Ürünlerimiz

Hidrolik Pompalar

6 Pistonlu Pompa A Tipi Arkadan Çıkışlı

POMPA KODU PUMP CODES	POMPA HACMİ PUMP VOLUME (LT)	A (mm)	GİRİŞ İNLET (B)	ÇIKIŞ OUTLET (C)	MAKSİMUM BASINÇ MAX PRESS (BAR)
PED0603510133A	35	220	R1 1/4"-11	R3/4"-14	250

PED0604510133A	45	220

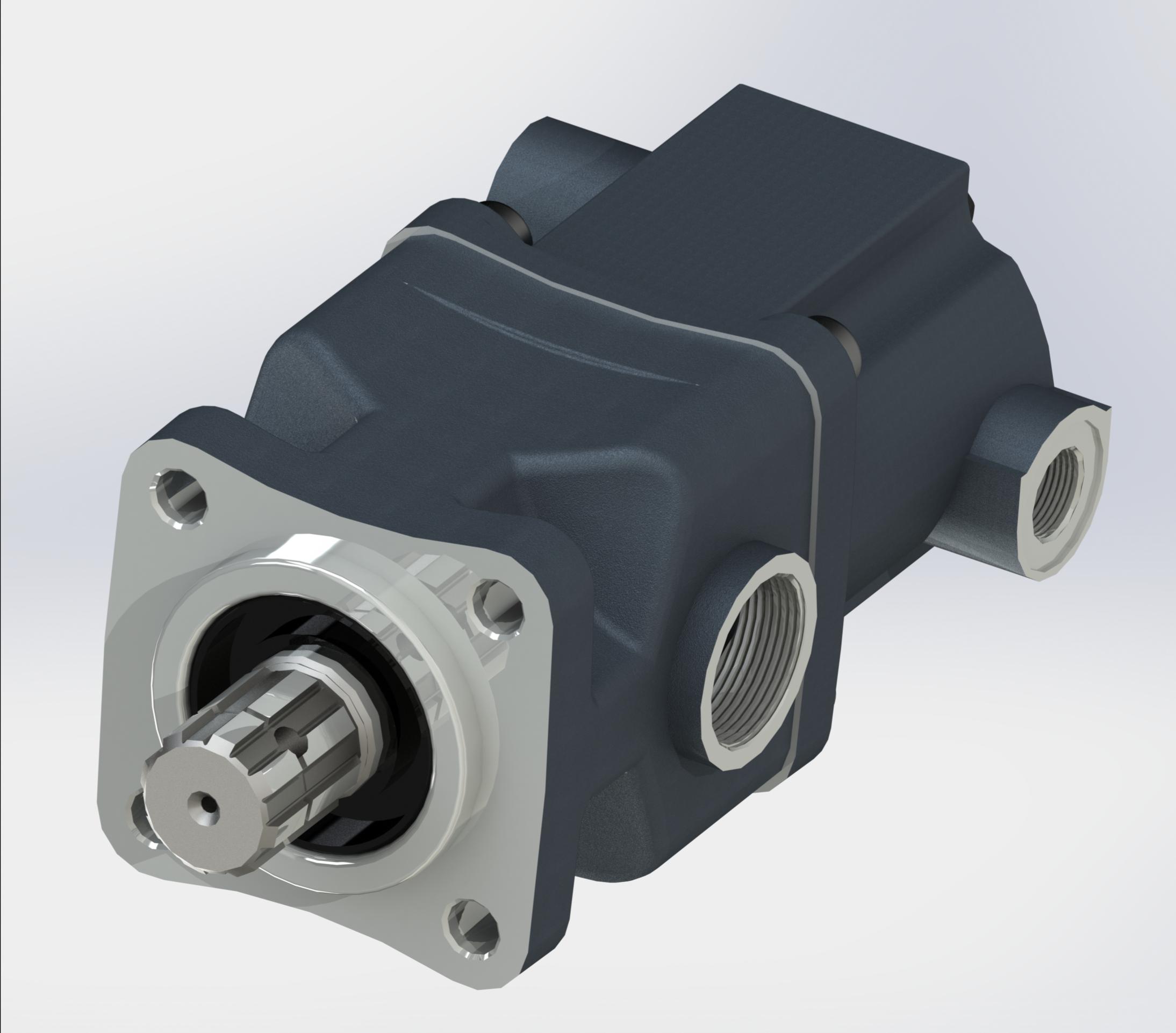

6 Pistonlu Pompa A Tipi

ODU PUMP CODES	POMPA HACMİ PUMP VOLUME (LT)	A (mm)	GİRİŞ İNLET (B)	ÇIKIŞ OUTLET (C)	MAKSİMUM BASINÇ MAX PRESS (BAR)
PED0603510133	35	220	R1 1/4"-11	R3/4"-14	250

PED0604510133	45	220

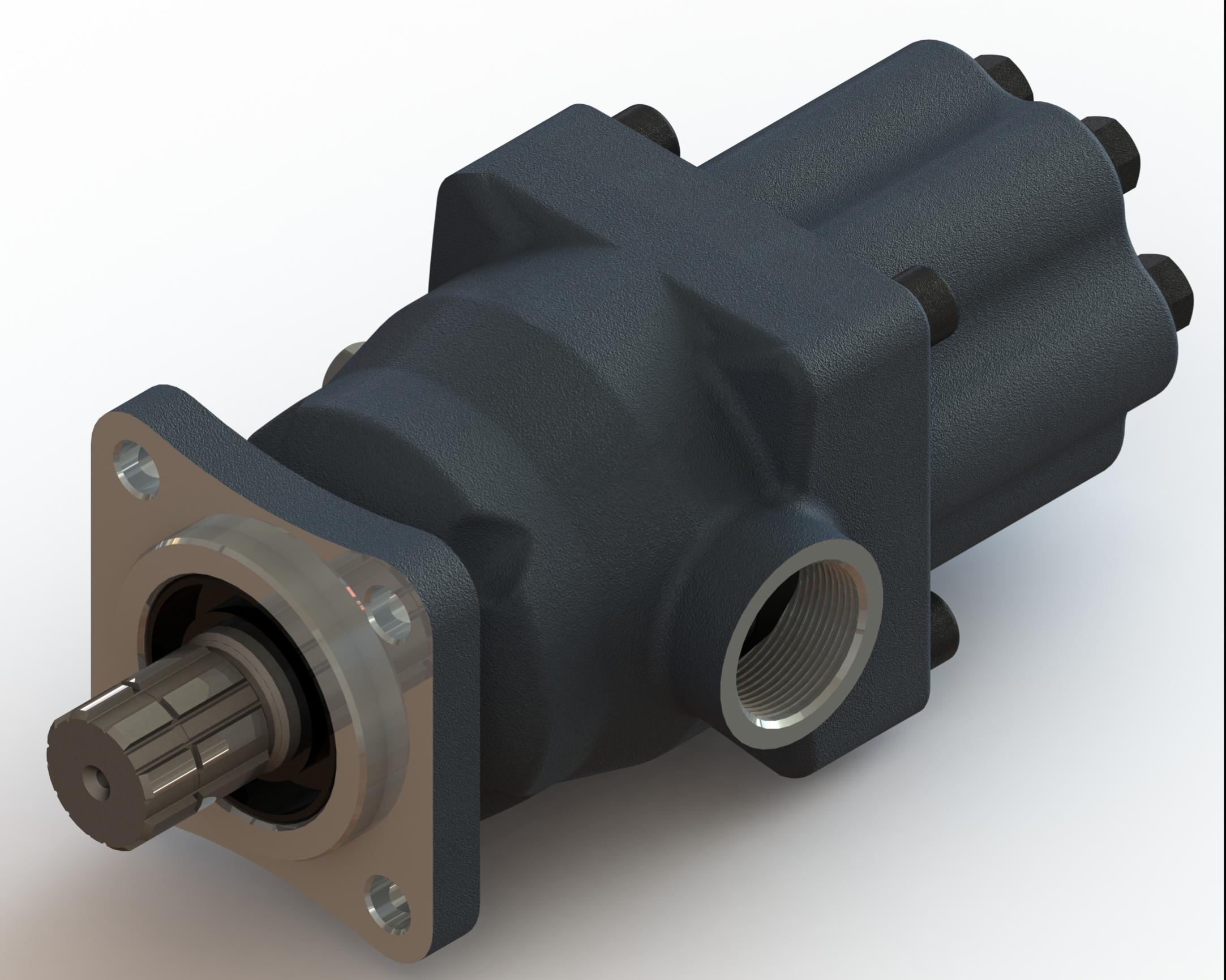

6 Pistonlu Yüksek Basınç Pompası ISO

POMPA KODU PUMP CODES	POMPA HACMİ PUMP VOLUME (LT)	A (mm)	GİRİŞ İNLET (B)	ÇIKIŞ OUTLET (C)	MAKSİMUM BASINÇ MAX PRESS (BAR)
PED0605550113	45	240	R1 1/4"-11	R3/4"-14	250

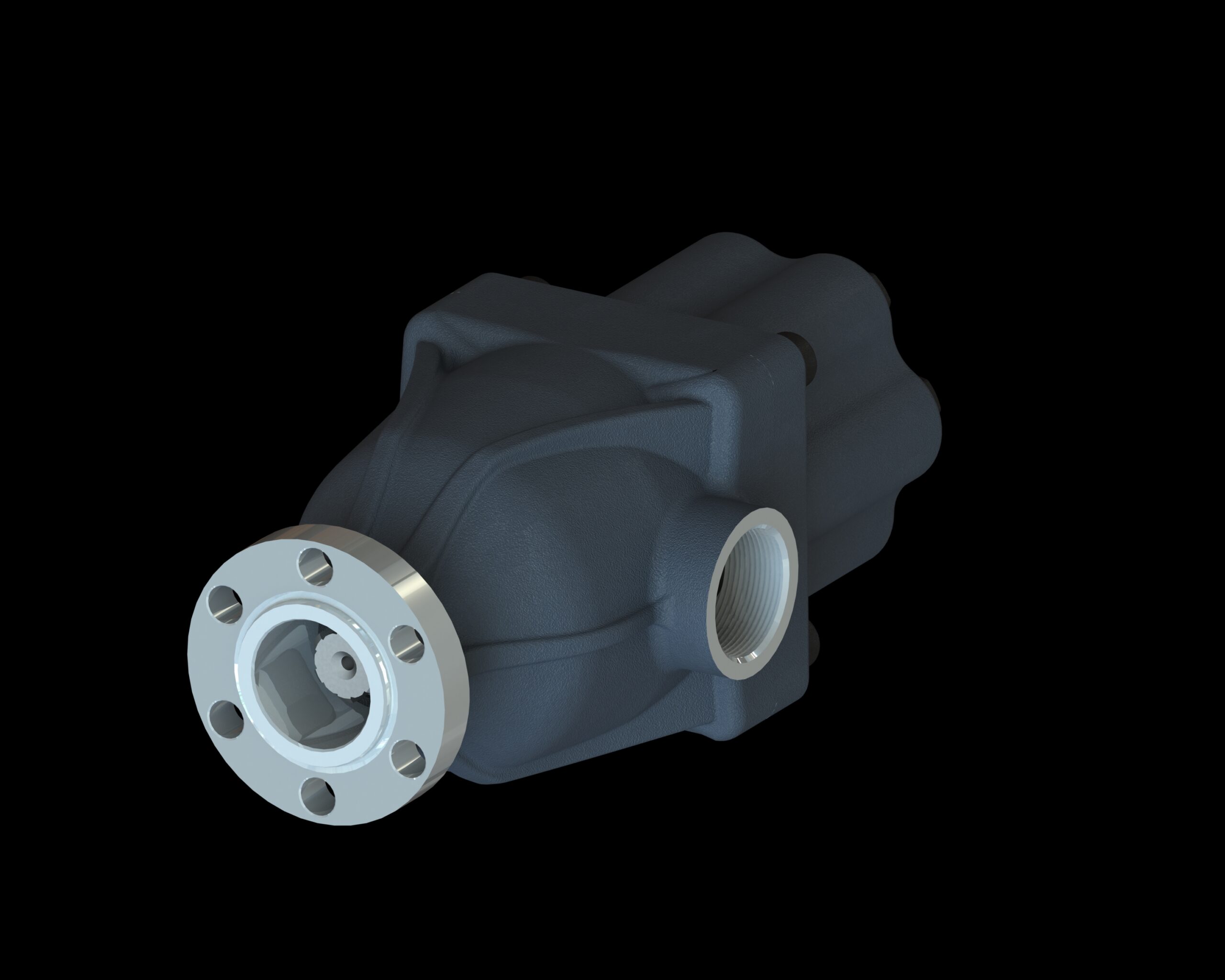

6 PİSTONLU YÜKSEK BASINÇ POMPASI UNI

POMPA KODU PUMP CODES	POMPA HACMİ PUMP VOLUME (LT)	A (mm)	GİRİŞ İNLET (B)	ÇIKIŞ OUTLET (C)	MAKSİMUM BASINÇ MAX PRESS (BAR)
PED0605550013	45	268	R1 1/4"-11	R3/4"-14	250

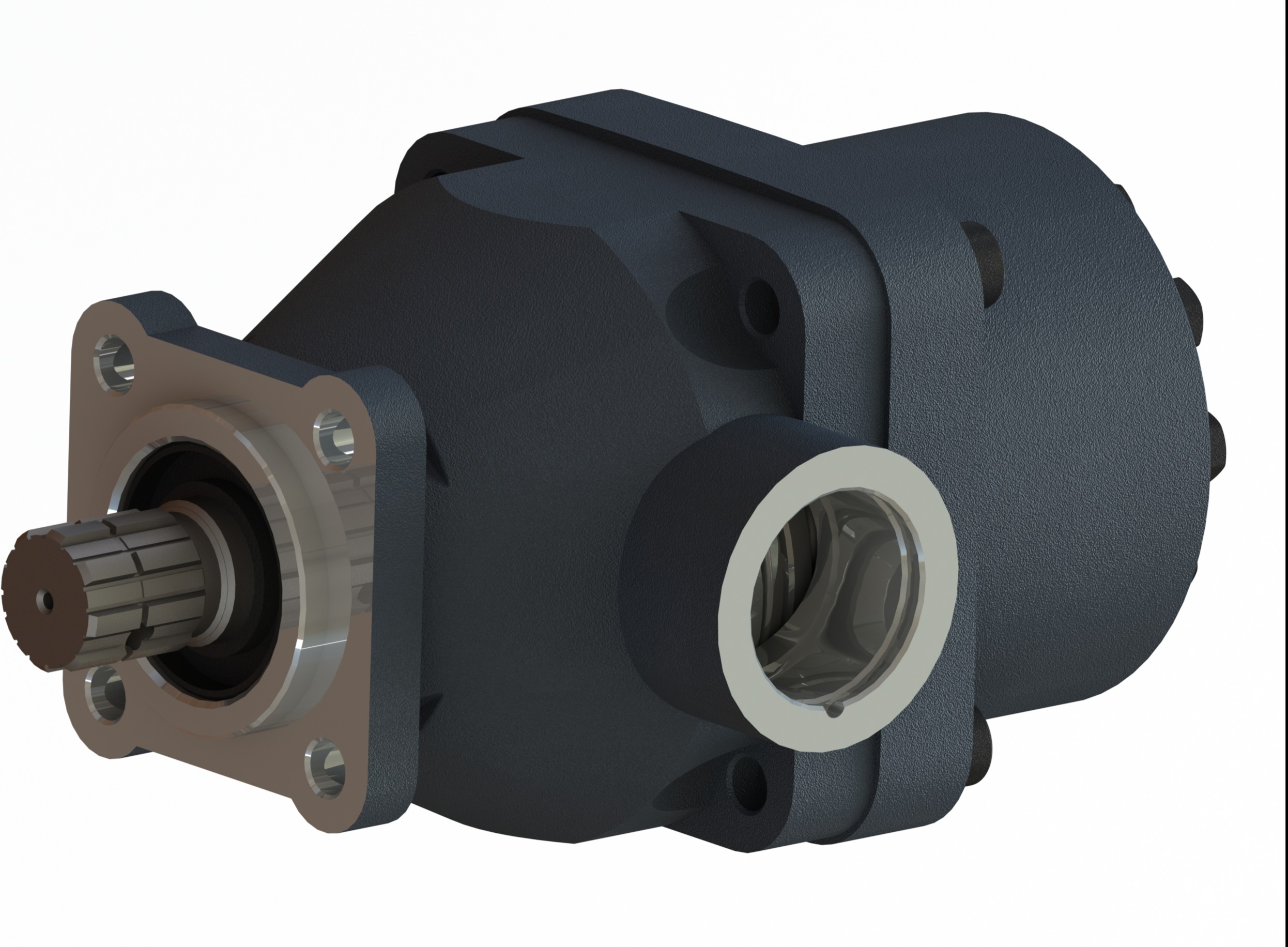

10 Pistonlu Pompa Akuple

POMPA KODU PUMP CODES	POMPA HACMİ PUMP VOLUME (LT)	A (mm)	GİRİŞ İNLET (B)	ÇIKIŞ OUTLET (C)	MAKSİMUM BASINÇ MAX PRESS (BAR)
PEDA100850133	85	246	Ø52mm	R1"-11	250

PEDA101000133	100	246

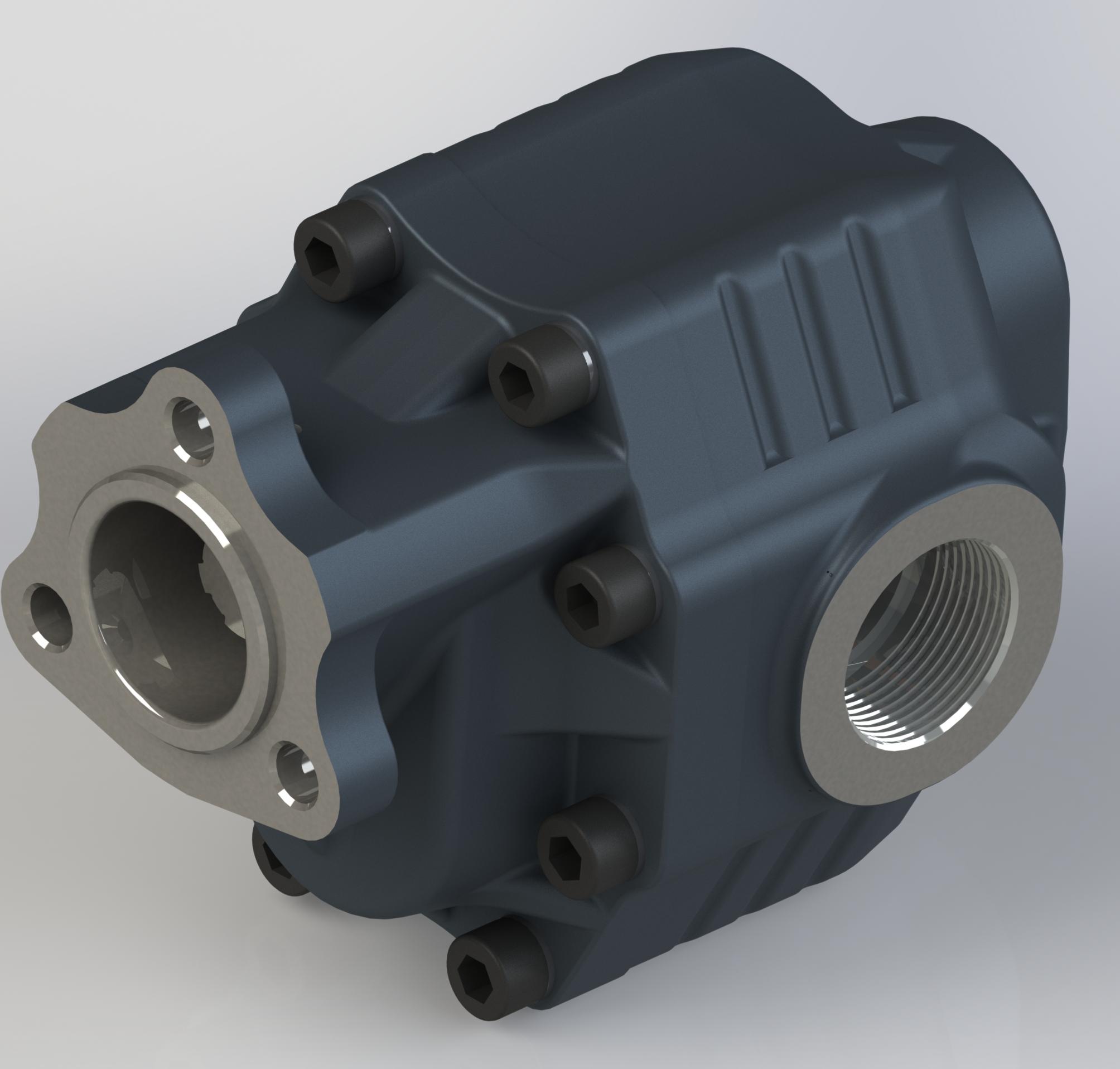

DP 30 Serisi Tek Dönüşlü UNI Pompalar

CODE KOD	ROTATION YÖN	DISPLACEMENT DEBİ (LT/min)	A (mm)	B (mm)	INLET GİRİŞ (C)	OUTLET ÇIKIŞ (D)	Max. Sürekli Basınç (Pnom)	Max. Pik Basınç
PDTD300170011	SAĞ/RIGHT	17	150,5	105,5	R1/2"-14	R1/2"-14	265	300
PDTD300170012	SOL/LEFT
PDTD300270011	SAĞ/RIGHT	27	157,5	109,5	R3/4"-14	R3/4"-14	260	290
PDTD300270012	SOL/LEFT
PDTD300340011	SAĞ/RIGHT	34	162,5	111,5			250	280
PDTD300340012	SOL/LEFT
PDTD300430011	SAĞ/RIGHT	43	169,5	114,5	R1"-11		240	270
PDTD300430012	SOL/LEFT
PDTD300510011	SAĞ/RIGHT	51	172,5	116,5		R1"-11	220	250
PDTD300510012	SOL/LEFT
PDTD300610011	SAĞ/RIGHT	61	180,5	117,5	R1 1/4"-11		210	240
PDTD300610012	SOL/LEFT
PDTD300820011	SAĞ/RIGHT	82	294,5	126,5			180	220
PDTD300820012	SOL/LEFT

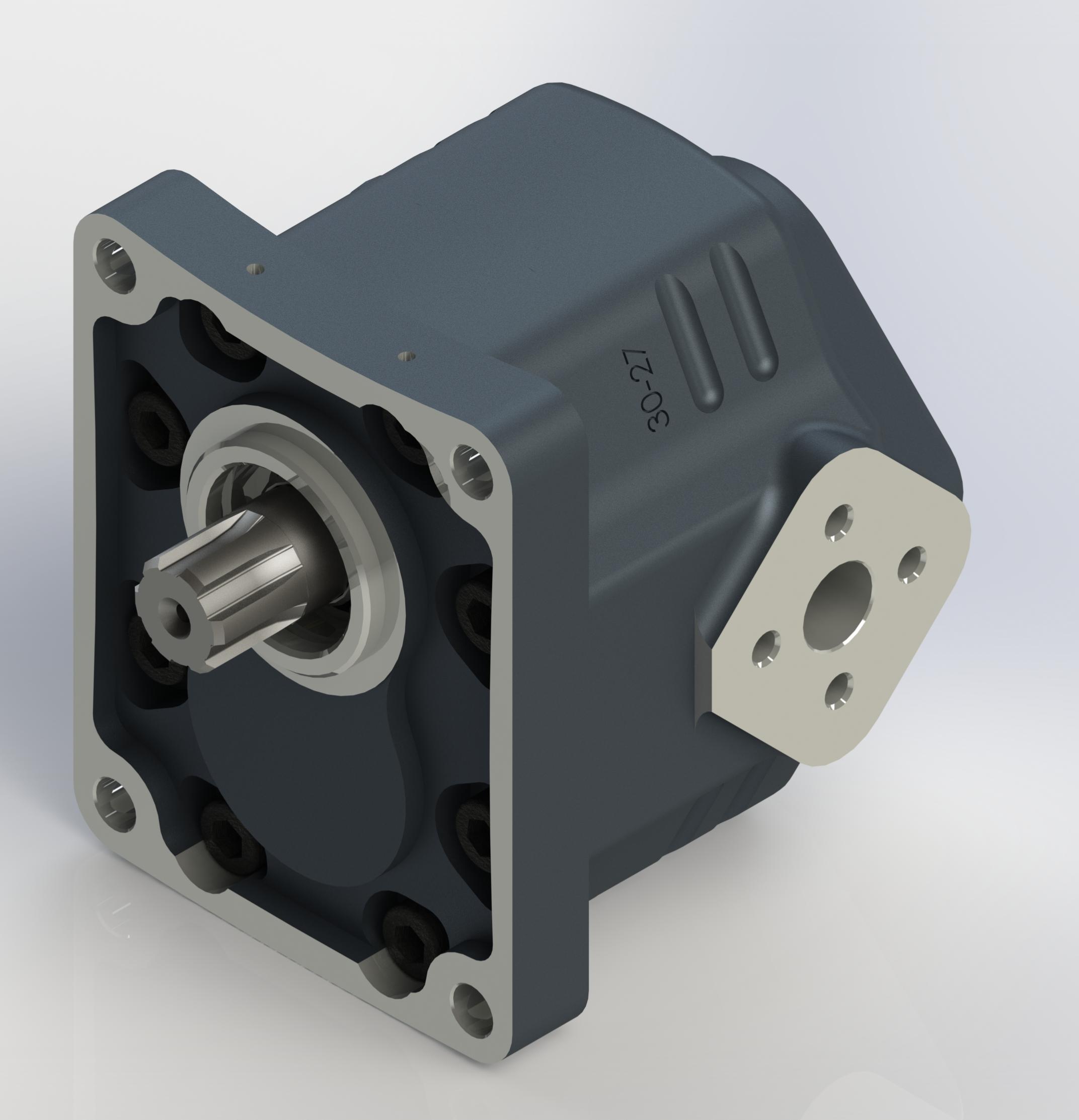

HPK 30 Serisi Tek Dönüşlü 6x25 Freze K Pompalar

POMPA KODU	ISO	UNI	T2
Pompa Tipi	30-34	30-34	30-34
Min. Boru Çapı
Ağırlık (kg)
(C) Yağ Girişi	R 3/4"	R 3/4"	R 3/4"
(D) Yağ Çıkışı	R 3/4"	R 3/4"	R 3/4"
Akışkan	Mineral Bazlı Hidrolik Yağ

DPA 30 NOP Serisi Çift Dönüşlü ISO Pompalar

POMPA KODU PUMP CODES	YÖN DİRECTİON	POMPA HACMİ PUMP VOLUME (LT)	A (mm)	B (mm)	GİRİŞ İNLET (C)	ÇIKIŞ OUTLET (D)	MAKSİMUM BASINÇ MAX PRESS (BAR)
PDCD300340133-1	ÇİFT-BİDİRECTİON	34	199	146	R3/4"-14	R3/4"-14	250
PDCD300430133-1	ÇİFT-BİDİRECTİON	43	207	149	R3/4"-14	R3/4"-14
PDCD300510133-1	ÇİFT-BİDİRECTİON	51	210	151	R1"-14	R1"-14
PDCD300610133-1	ÇİFT-BİDİRECTİON	61	216	152
PDCD300820133-1	ÇİFT-BİDİRECTİON	82	226	161

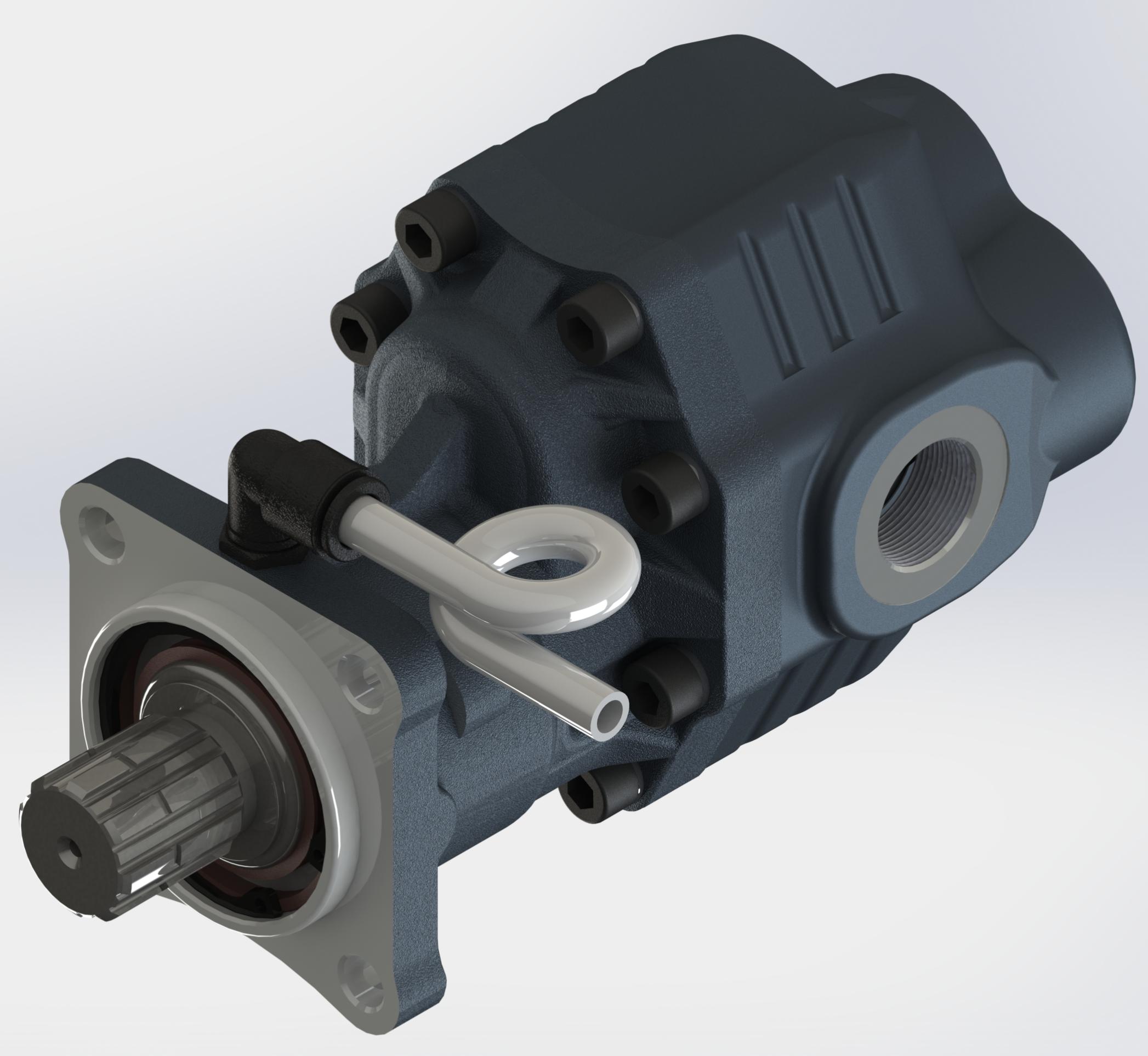

DPA 30 NOP Serisi Tek Dönüşlü ISO Pompalar

POMPA KODU PUMP CODES	YÖN DİRECTİON	POMPA HACMİ PUMP VOLUME (LT)	A (mm)	B (mm)	GİRİŞ İNLET (C)	ÇIKIŞ OUTLET (D)	MAKSİMUM BASINÇ MAX PRESS (BAR)
PDTD300170131-1	SAĞ/RIGHT	17	179	134	R1/2"-14	R1/2"-14	250
PDTD300170132-1	SOL/LEFT
PDTD300270131-1	SAĞ/RIGHT	27	186	138	R3/4"-14	R3/4"-14
PDTD300270132-1	SOL/LEFT
PDTD300340131-1	SAĞ/RIGHT	34	191	140
PDTD300340132-1	SOL/LEFT
PDTD300430131-1	SAĞ/RIGHT	43	198	143	R1"-11
PDTD300430132-1	SOL/LEFT
PDTD300510131-1	SAĞ/RIGHT	51	201	145		R1"-11
PDTD300510132-1	SOL/LEFT
PDTD300610131-1	SAĞ/RIGHT	61	209	146	R1 1/4"-11
PDTD300610132-1	SOL/LEFT
PDTD300820131-1	SAĞ/RIGHT	82	323	155
PDTD300820132-1	SOL/LEFT

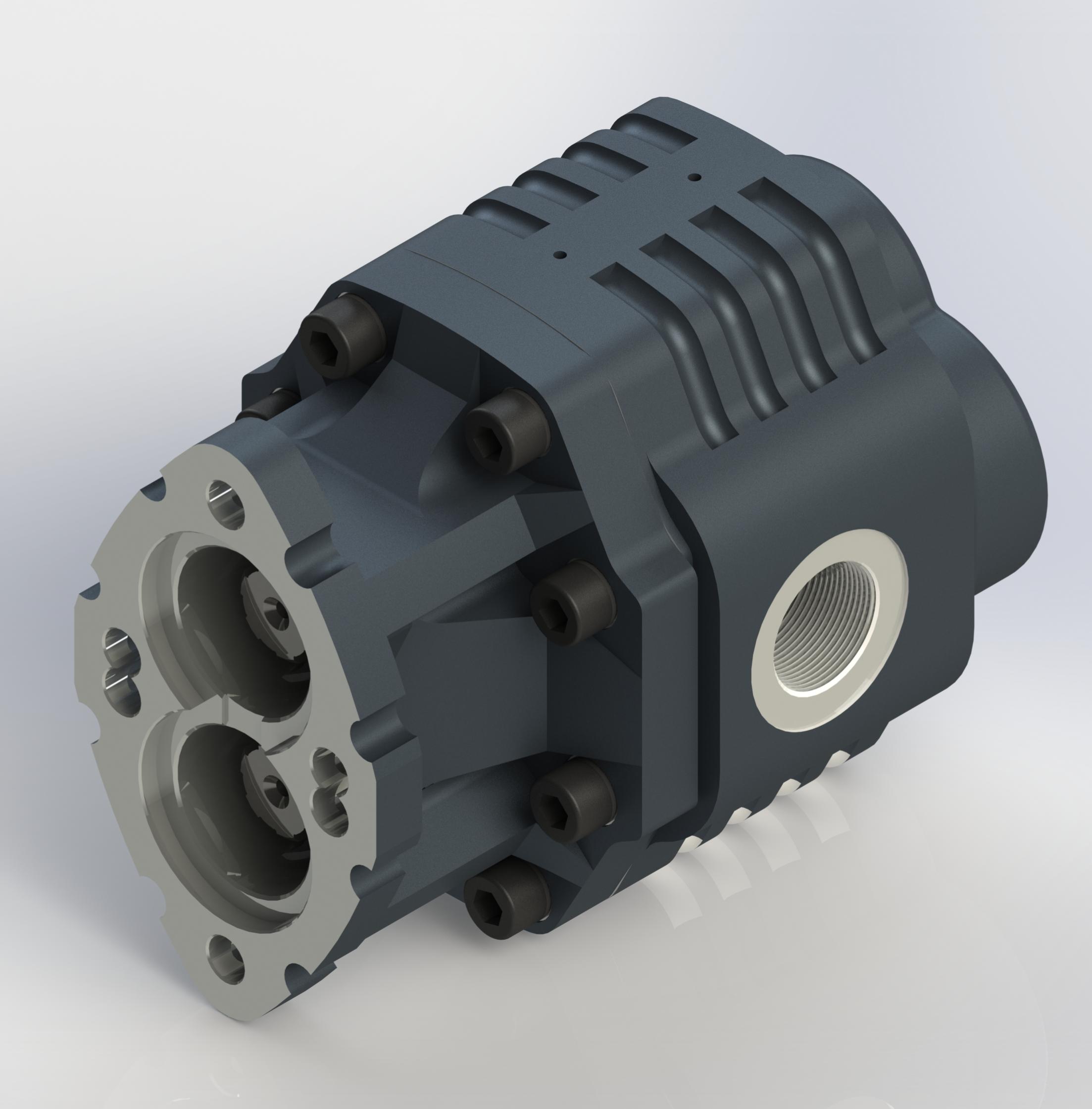

T2 30 Serisi Çift Dönüşlü UNI Pompalar

POMPA KODU PUMP CODES	YÖN DİRECTİON	POMPA HACMİ PUMP VOLUME (LT)	A (mm)	B (mm)	GİRİŞ İNLET (C)	ÇIKIŞ OUTLET (D)	MAKSİMUM BASINÇ MAX PRESS (BAR)	AGIRLIK WEİGHT (KG)
PDTD300170023	ÇİFT/BİDİRECTİON	17	147,5	102,5	R1/2"-14	R1/2"-14	250	8,8
PDTD300270023	ÇİFT/BİDİRECTİON	27	154,5	106,5	R3/4"-14	R3/4"-14		8,9
PDTD300340023	ÇİFT/BİDİRECTİON	34	159,5	108,5	R3/4"-14			9
PDTD300430023	ÇİFT/BİDİRECTİON	43	166,5	111,5	R1"-11			9,15
PDTD300510023	ÇİFT/BİDİRECTİON	51	169,5	113,5	R1"-11	R1"-11		9,8
PDTD300610011	ÇİFT/BİDİRECTİON	61	177,5	114,5	R1 1/4"-11			11,3
PDTD300820023	ÇİFT/BİDİRECTİON	82	291,5	123,5	R1 1/4"-11			11,33

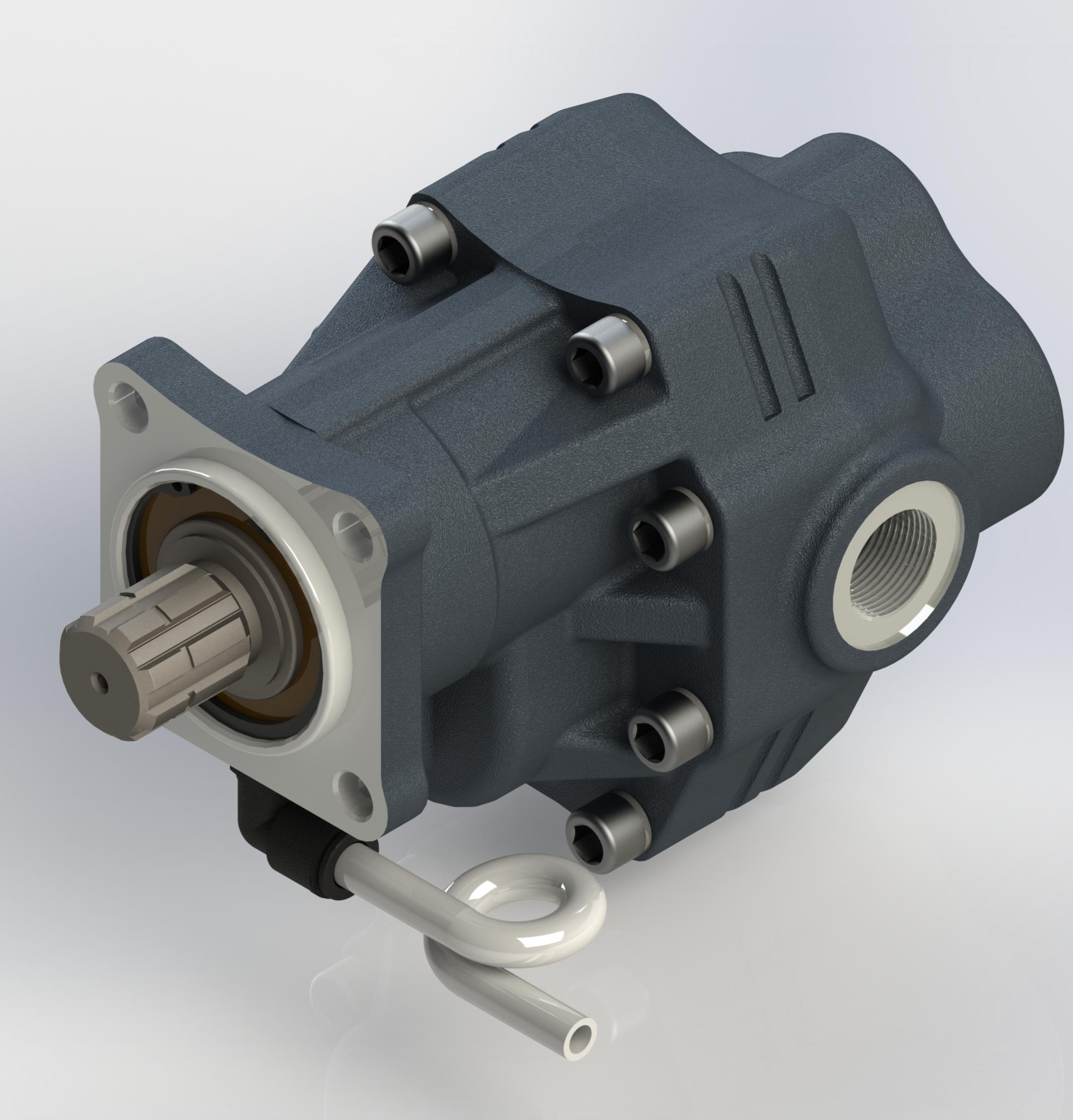

DPA 35 NOP Serisi Çift Dönüşlü ISO Pompalar

POMPA KODU PUMP CODES	YÖN DİRECTİON	POMPA HACMİ PUMP VOLUME (LT)	A (mm)	B (mm)	GİRİŞ İNLET (C)	ÇIKIŞ OUTLET (D)	MAKSİMUM BASINÇ MAX PRESS (BAR)
PDCD350900133-1	ÇİFT-BİDİRECTİON	90	223	155	R1 1/4"-11	R1 1/4"-11	250
PDCD351100133-1	ÇİFT-BİDİRECTİON	110	231	163	R1 1/4"-11	R1 1/4"-11	250

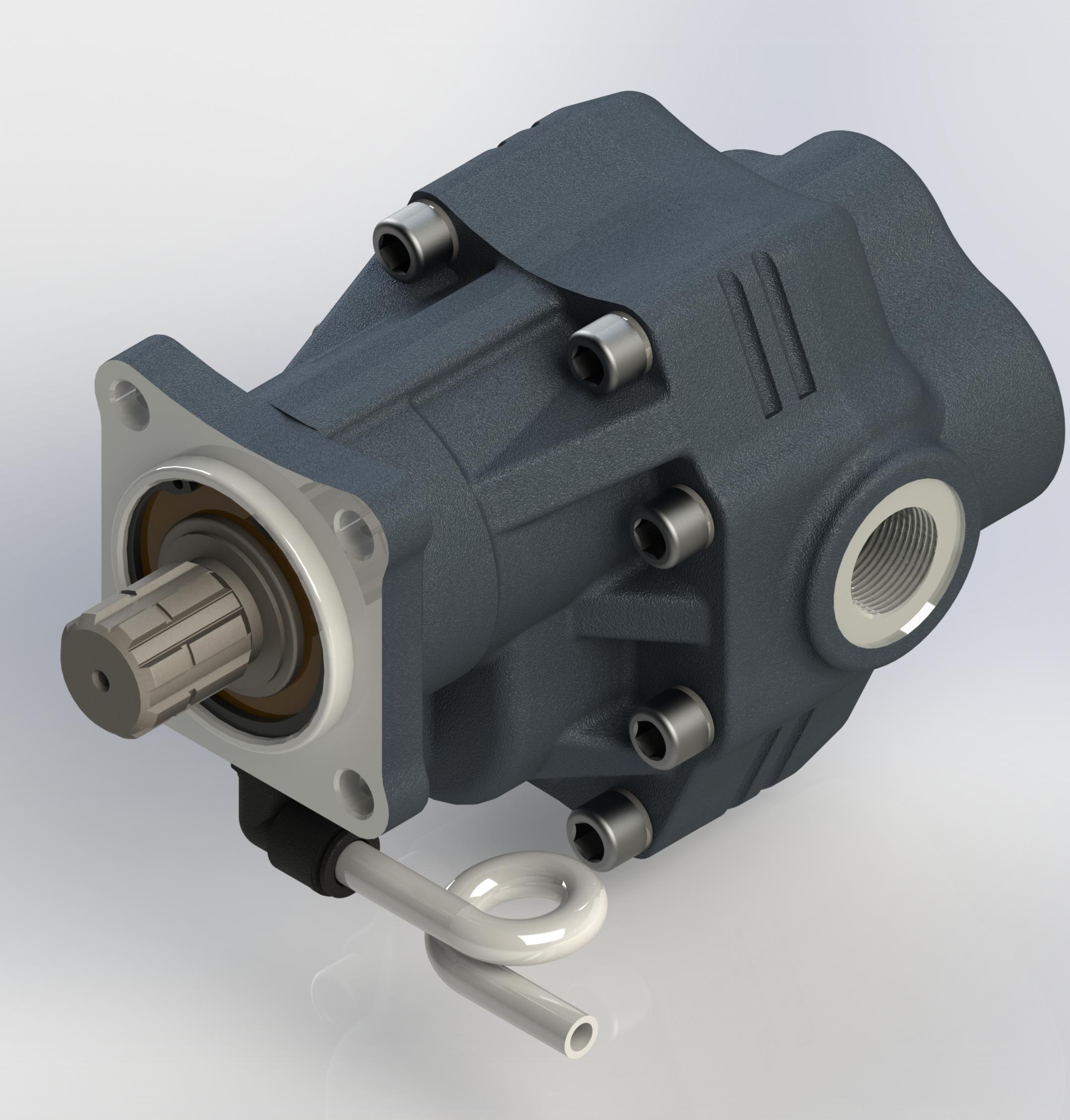

DPA 35 NOP Serisi Tek Dönüşlü ISO Pompalar

POMPA KODU PUMP CODES	YÖN DİRECTİON	POMPA HACMİ PUMP VOLUME (LT)	A (mm)	B (mm)	GİRİŞ İNLET (C)	ÇIKIŞ OUTLET (D)	MAKSİMUM BASINÇ MAX PRESS (BAR)
PDTD350900131-1	SAĞ/RIGHT	90	225	152,5	R1 1/4"-11	R1"-1	250
PDTD350900132-1	SOL/LEFT
PDTD351100131-1	SAĞ/RIGHT	110	233	160,5	R1 1/4"-11	R1"-1
PDTD350900132-1	SOL/LEFT

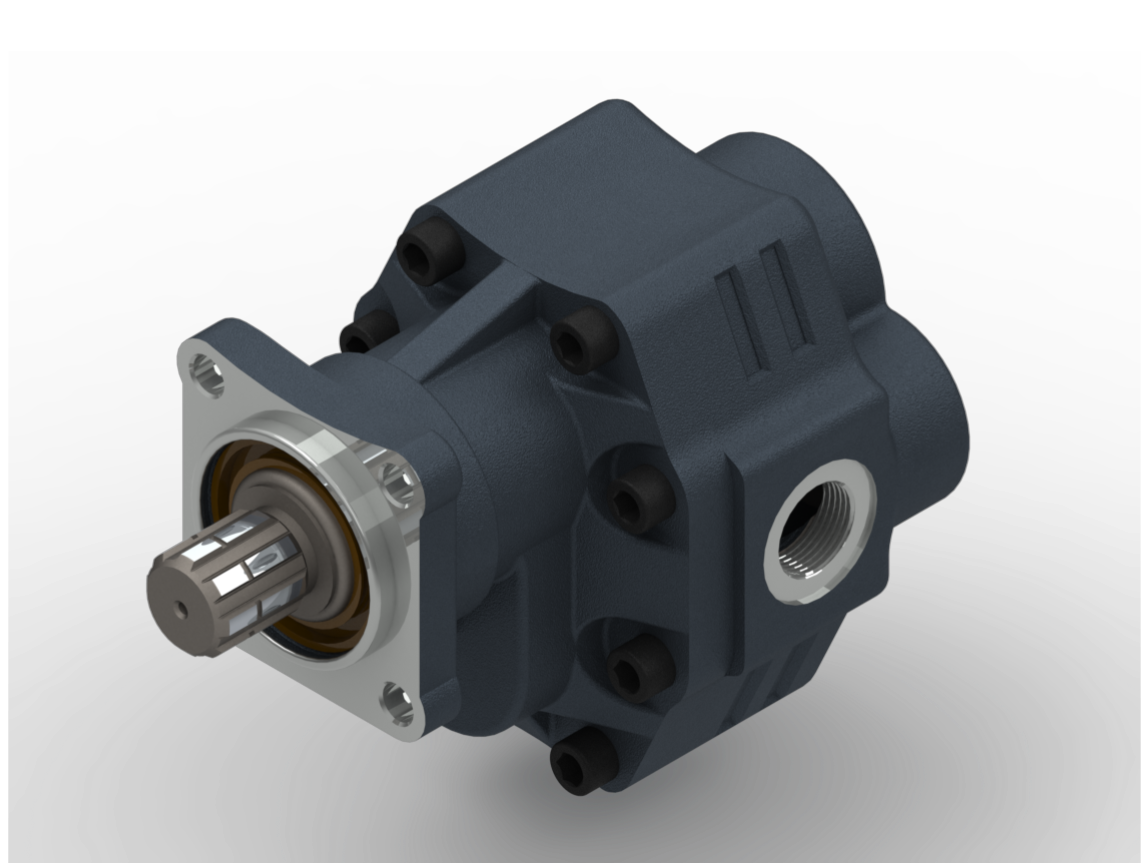

DPA 40 Serisi Tek Dönüşlü ISO Pompalar

POMPA KODU PUMP CODES	YÖN DİRECTİON	POMPA HACMİ PUMP VOLUME (LT)	A (mm)	B (mm)	GİRİŞ İNLET (C)	ÇIKIŞ OUTLET (D)	MAKSİMUM BASINÇ MAX PRESS (BAR)
PDTD400630131	SAĞ/RIGHT	63	202	139	R1"-11	R3/4"-14	250
PDTD400630132	SOL/LEFT
PDTD400730131	SAĞ/RIGHT	73	207	142	R1 1/4"-11
PDTD400730132	SOL/LEFT
PDTD400870131	SAĞ/RIGHT	87	210	144		R1"-11
PDTD400870132	SOL/LEFT
PDTD401090131	SAĞ/RIGHT	109	218	145
PDTD401090132	SOL/LEFT
PDTD401330131	SAĞ/RIGHT	133	233	145	R1 1/2"-11
PDTD401330132	SOL/LEFT
PDTD401510131	SAĞ/RIGHT	151	241	148
PDTD401510132	SOL/LEFT

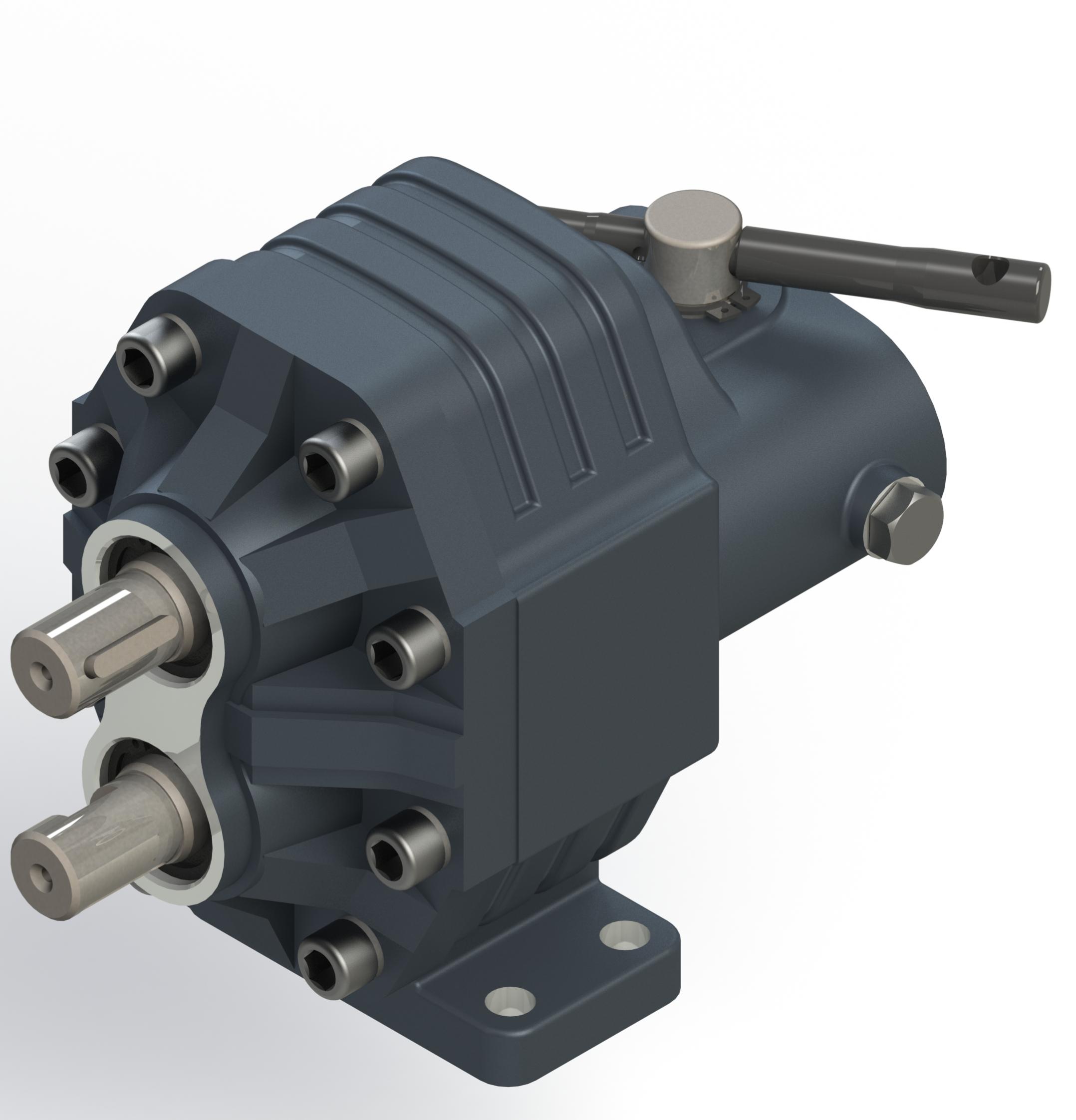

DPM 40 Serisi Mekanik Ventilli Kamalı Pompalar

POMPA KODU PUMP CODES	YÖN DİRECTİON	POMPA HACMİ PUMP VOLUME (LT)	A (mm)	GİRİŞ İNLET (B)	ÇIKIŞ OUTLET (C)	MAKSİMUM BASINÇ MAX PRESS (BAR)
PDCDV401091343	ÇİFT-BİDİRECTİON	109	218	R1 1/4"-11	R1"-11	250

PTO

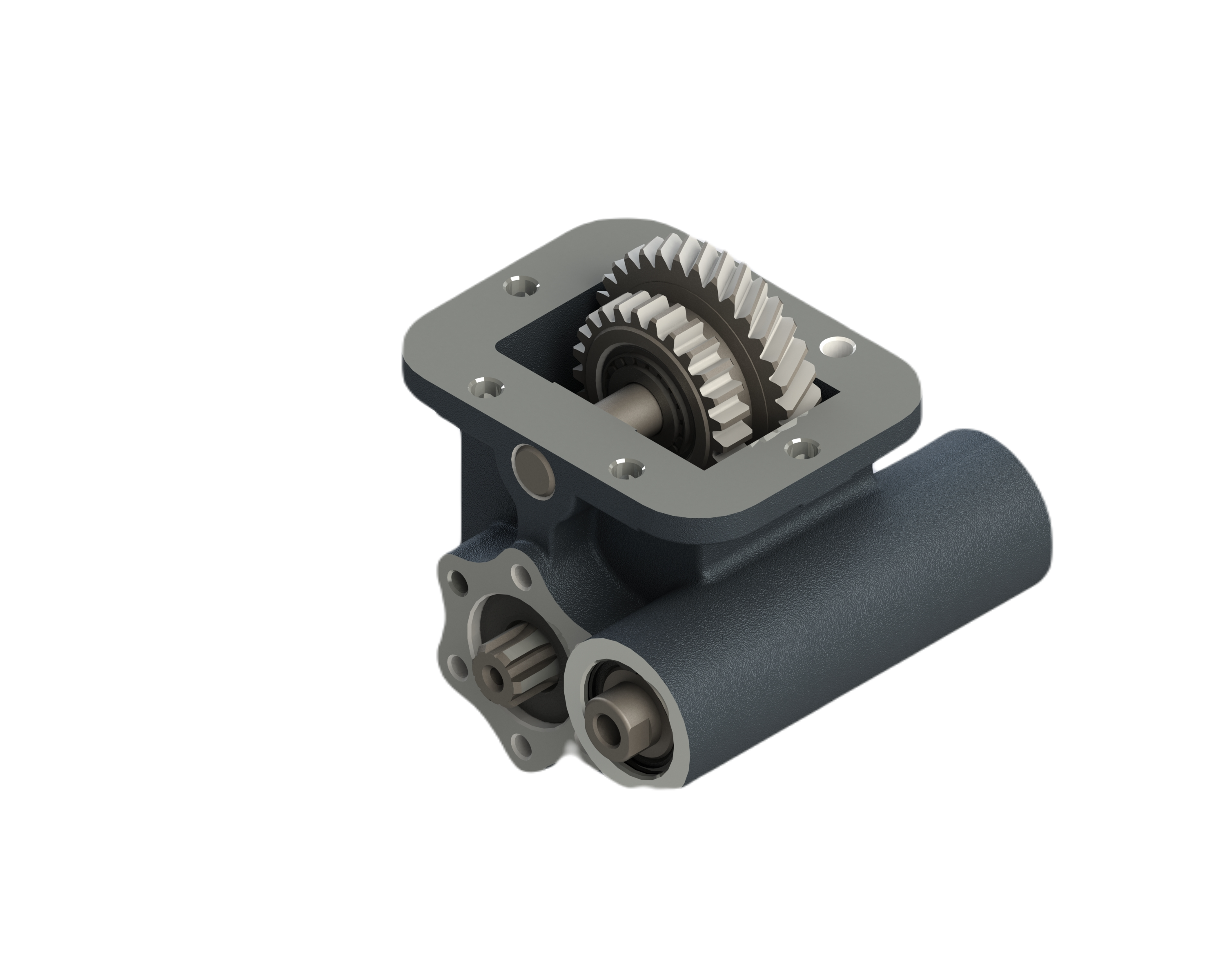

PTO Iveco 2840.6 Yan UNI

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
50810512M0	MEKANİK MECHANİC	UNİ	YAN SIDE	23 Kgm 225 Nm	31,6 Hp 23,6 Kw	1000	1:1,24
50810522M0		ADAPTÖRLÜ İSO ADAPTER WİTH İSO
50810532M0		FLANŞLI WİTH FLANGED
50810542M0		ŞAFTLI WİTH SHAFT
50810512V0	VAKUMLU WİTH VACUUM	UNİ
50810522V0		ADAPTÖRLÜ İSO ADAPTER WİTH İSO
50810532V0		FLANŞLI WİTH FLANGED
50810542V0		ŞAFTLI WİTH SHAFT

Kullanıldığı Araçlar

IVECO 45C15 - DAILY 4X4 - 50C18 - 35C15 - 50C15 - IVECO 65C15 - 70C15 IVECO DAILY 4X4 55S18 / NISSAN ATLEON 56.15 / NISSAN CABSTAR 45.13 / RENAULT MAXITY

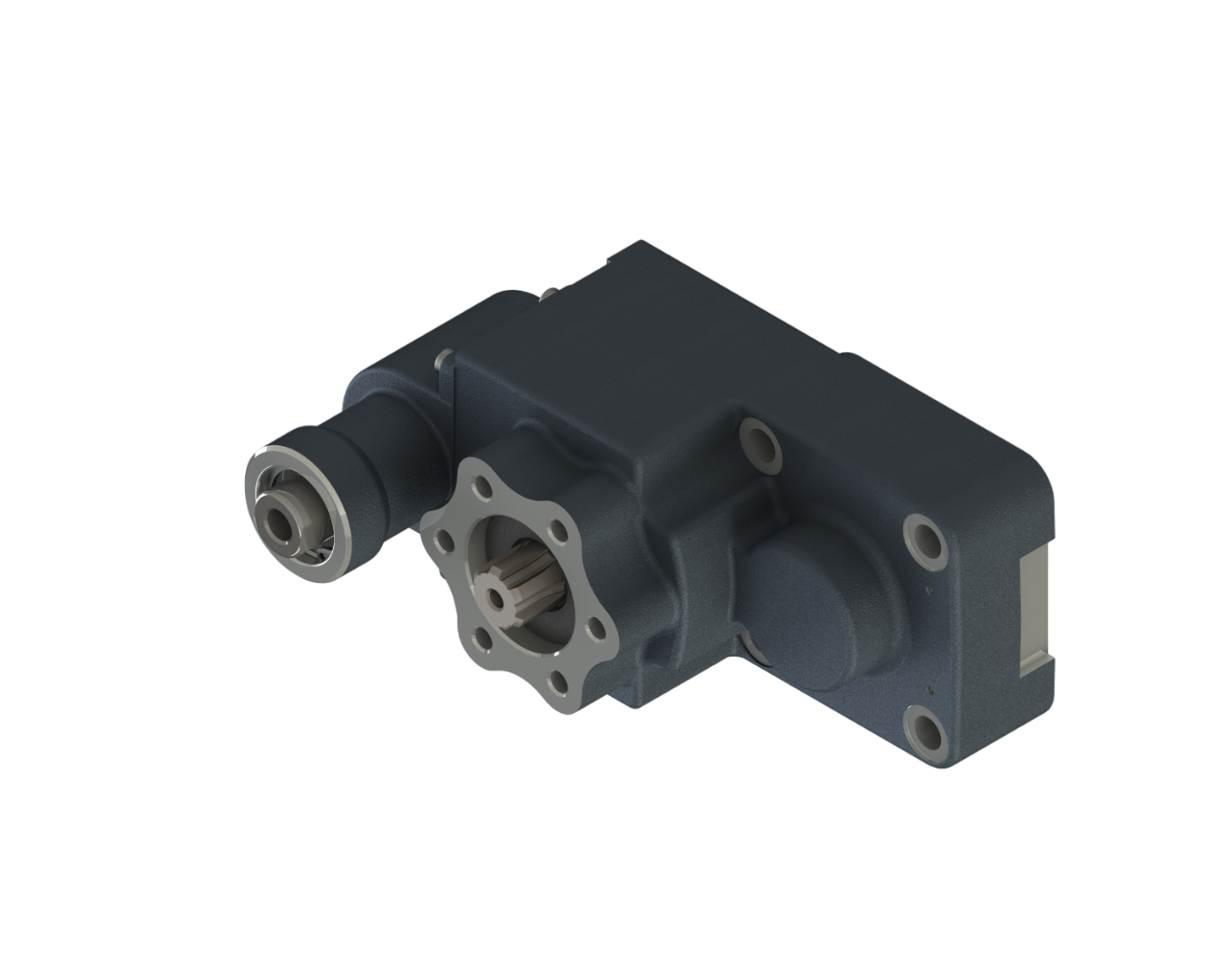

PTO Iveco 2855 Kuyruk UNI

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
50812311P0	PNÖMATİK PNEUMATİC	UNİ	KUYRUK REAR	18,3 Kgm 179,5 Nm	16,8 Hp 12,5 Kw	650	1:1,12
50812321P0		ADAPTÖRLÜ İSO ADAPTER WİTH İSO
50812331P0		FLANŞLI WİTH FLANGED
50812341P0		ŞAFTLI WİTH SHAFT

Kullanıldığı Araçlar

IVECO 60.10-60.12-75.14-80.14-80.12-85.12-85.14-120.14-140.14-150.14-130E15-80.15-100.15 -120.15-150E21-220E21-60.14-65E12-65E14-75.12-75E14-75E15-80E15-80E18-85E13-85E15- 100E15-100E18-130E15-130E18 -79.12-75E17 - 75E18 / 120 EL 15 / 75E14 / 75E15

PTO Eaton Hema 475 Kuyruk Pnö. UNI

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
50410311P0	PNÖMATİK PNEUMATİC	UNİ	KUYRUK REAR	21,5 Kgm 210,9 Nm	19,2 HP 14 Kw	650 RPM	1/1,12
50410321P0		ADAPTÖRLÜ İSO ADAPTER WİTH İSO
50410331P0		FLANŞLI WİTH FLANGED
50410341P0		ŞAFTLI WİTH SHAFT

Kullanıldığı Araçlar

105.08-110.08-145.22 FATIH / 2014-2114-FORD CARGO 1800 INTER / 1212-1312 FORD (83-86) 1812-1814-2014-2117-2517 FORD (86) 140-1340 BMC / ZIL (RUS)

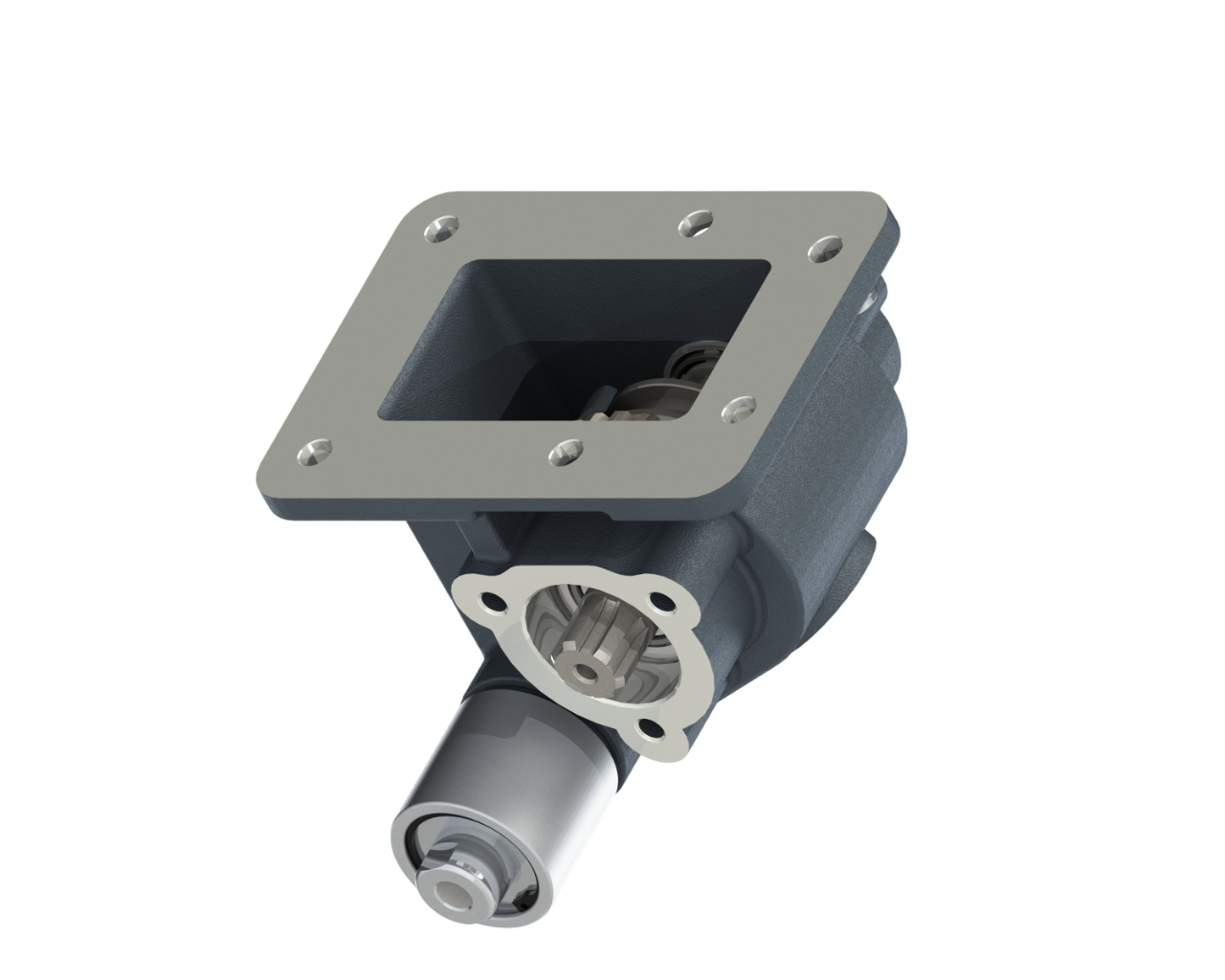

PTO Hyundai HD75 Euro 4 (5 Vites) Vakumlu UNI

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
51214512V0	VAKUMLU WİTH VACUUM	UNİ	YAN SIDE	22 Kgm 220 Nm	31,6 Hp 23,6 Kw	1000	1:0,95
51214522V0		ADAPTÖRLÜ İSO ADAPTER WİTH İSO
51214532V0		FLANŞLI WİTH FLANGED
51214542V0		ŞAFTLI WİTH SHAFT

Kullanıldığı Araçlar

HD 75 / HD 35 EURO 4 / 75 EURO 4 (5 VİTES)

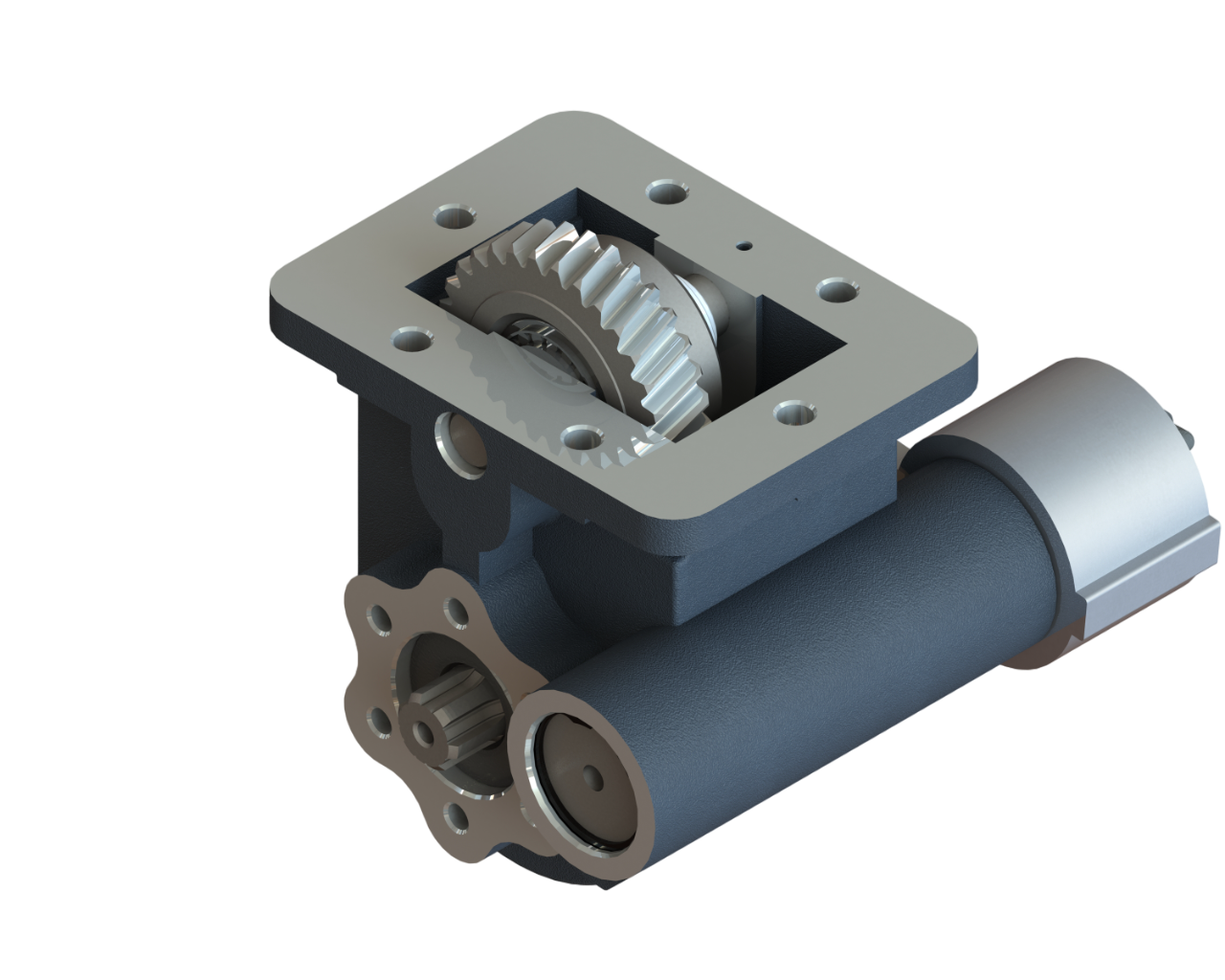

PTO Hyundai HD75 Euro 4 (6 Vites) Vakumlu UNI

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
51215512V0	VAKUMLU WİTH VACUUM	UNİ	YAN SIDE	22 Kgm 220 Nm	31,6 Hp 23,6 Kw	1000	1:0,95
51215522V0		ADAPTÖRLÜ İSO ADAPTER WİTH İSO
51215532V0		FLANŞLI WİTH FLANGED
51215542V0		ŞAFTLI WİTH SHAFT

Kullanıldığı Araçlar

2011 6 VİTES YENİ HYUNDAI HD 75 EURO 4 / HD 75 F 160

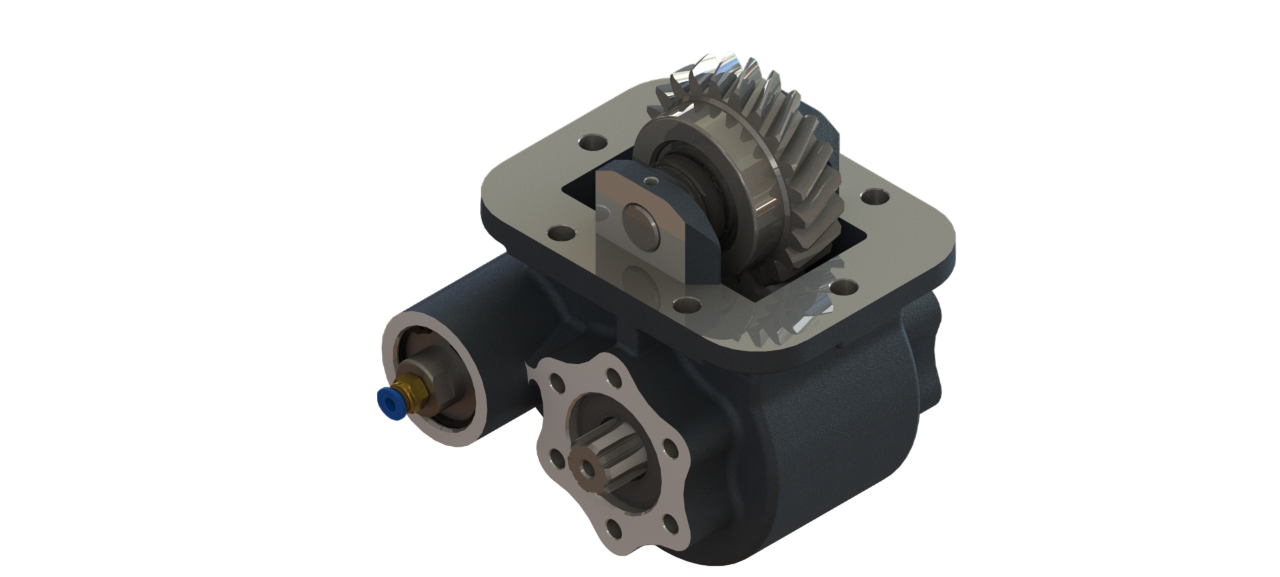

PTO Iveco 2855 Yan UNI

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
50812512P0	PNÖMATİK PNEUMATİC	UNİ	YAN SIDE	24,4 Kgm 240 Nm	32 Hp 23,3 Kw	1000	1:0,88
50812522P0		ADAPTÖRLÜ İSO ADAPTER WİTH İSO
50812532P0		FLANŞLI WİTH FLANGED
50812542P0		ŞAFTLI WİTH SHAFT

Kullanıldığı Araçlar

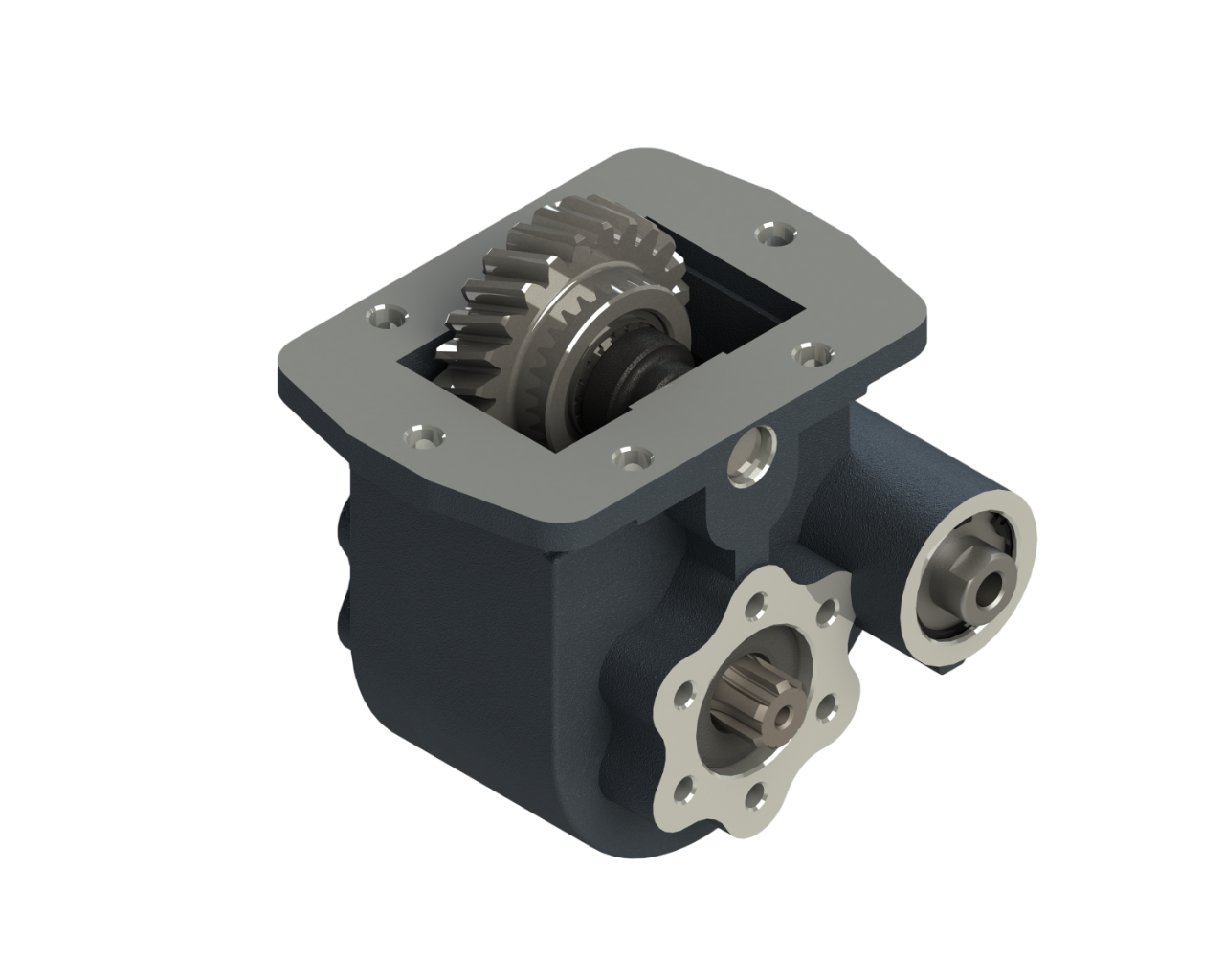

PTO JAC LC6T55 Pnö. UNI

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
52110512P0	PNÖMATİK PNEUMATİC	UNİ	YAN SIDE	22 Kgm 220 Nm	30 Hp 23 Kw	100	1.0,9
52110522P0		ADAPTÖRLÜ İSO ADAPTER WİTH İSO
52110532P0		FLANŞLI WİTH FLANGED
52110542P0		ŞAFTLI WİTH SHAFT

Kullanıldığı Araçlar

JAC 3,8

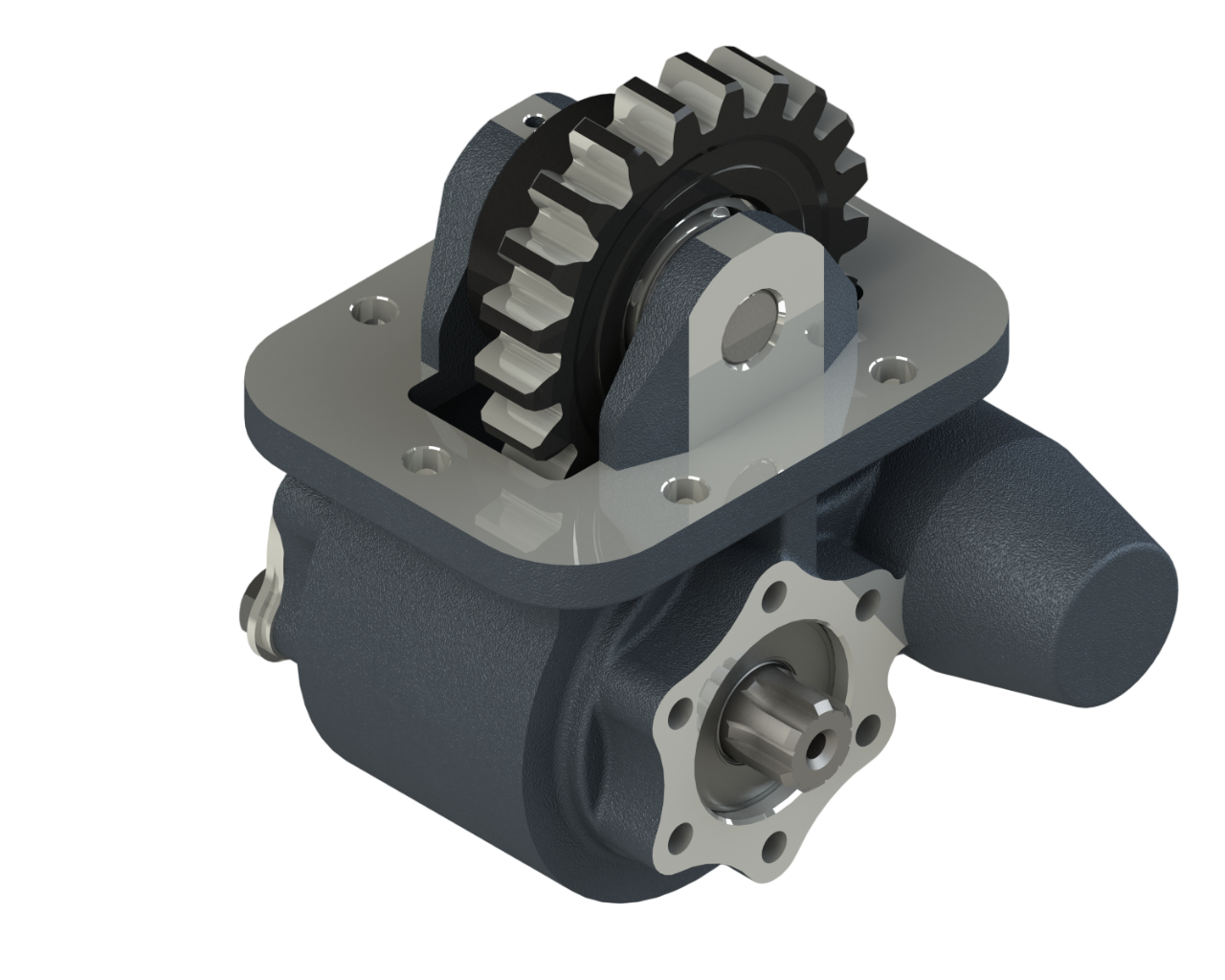

PTO Mack 1 DM600 Pnö. UNI

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
5111512P0	PNÖMATİK PNEUMATİC	UNİ	YAN SIDE	25 Kgm 245 Nm	47 Hp 35 Kw	950	1:1,16
5111522P0		ADAPTÖRLÜ İSO ADAPTER WİTH İSO
5111532P0		FLANŞLI WİTH FLANGED
5111542P0		ŞAFTLI WİTH SHAFT

Kullanıldığı Araçlar

MACK DM600-DM611 S 6296-MACK 5.08-MACK TRD 722

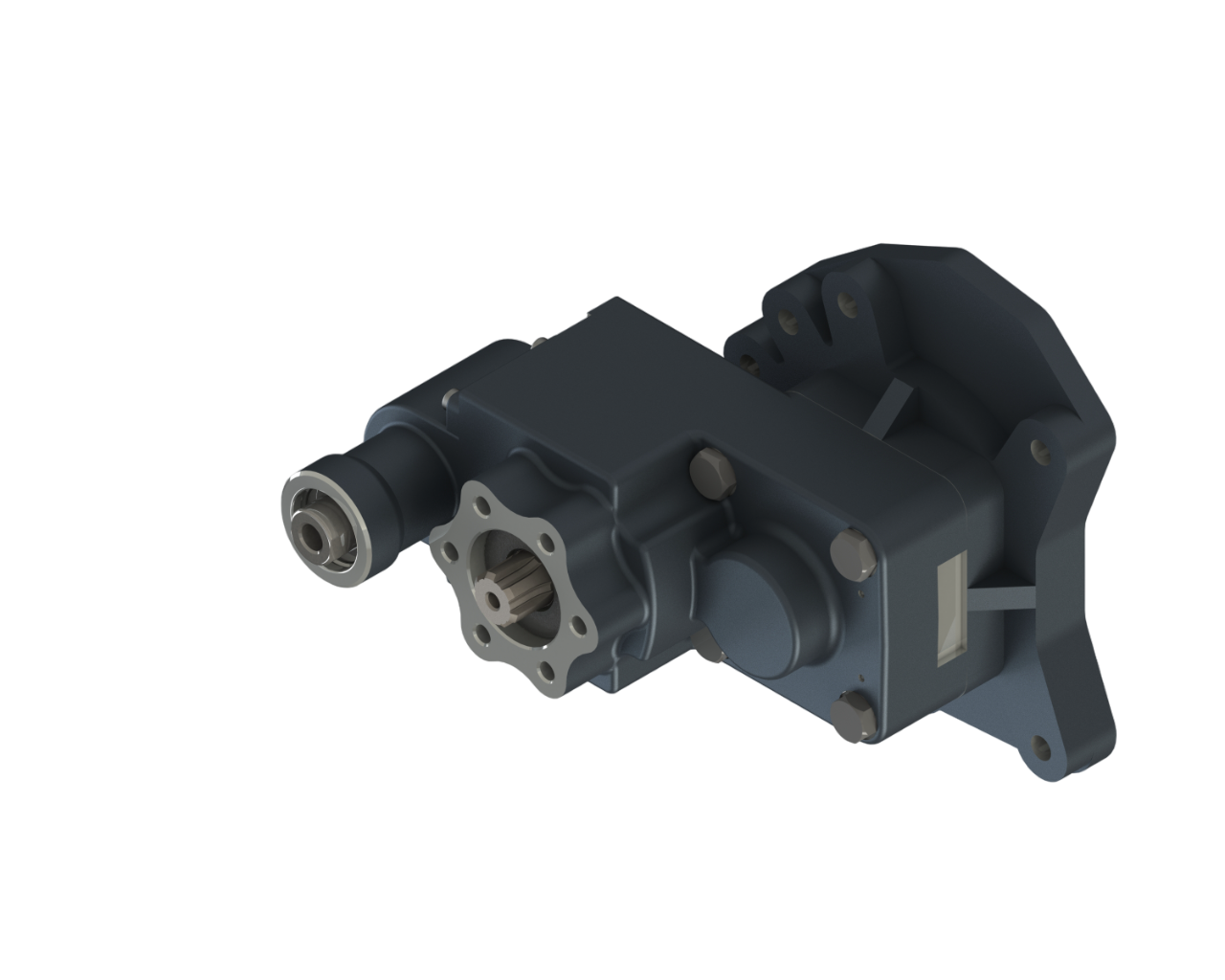

PTO Mercedes G100-2 Aktarmalı Pnö. ISO

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
50137311P0	PNÖMATİK PNEUMATİC	ADAPTÖRLÜ UNİ ADAPTER UNİ	KUYRUK REAR	30 Kgm 295 Nm	57,7 Hp 43 Kw	675	1:1,12
50137321P0		İSO
50137331P0		ADAPTÖRLÜ FLANŞLI FLANGED WİTH ADAPTER
50137341P0		ADAPTÖRLÜ ŞAFTLI SHAFT WİTH ADAPTER

Kullanıldığı Araçlar

1528-1823-1828-1924-2523-2528-2623-2628-2832-3224-3228 AXOR / 2632 ACTROS 823-923- 1023-1223-1225-1228-1323-1328-1523-1528-1828-2528-2628 ATEGO

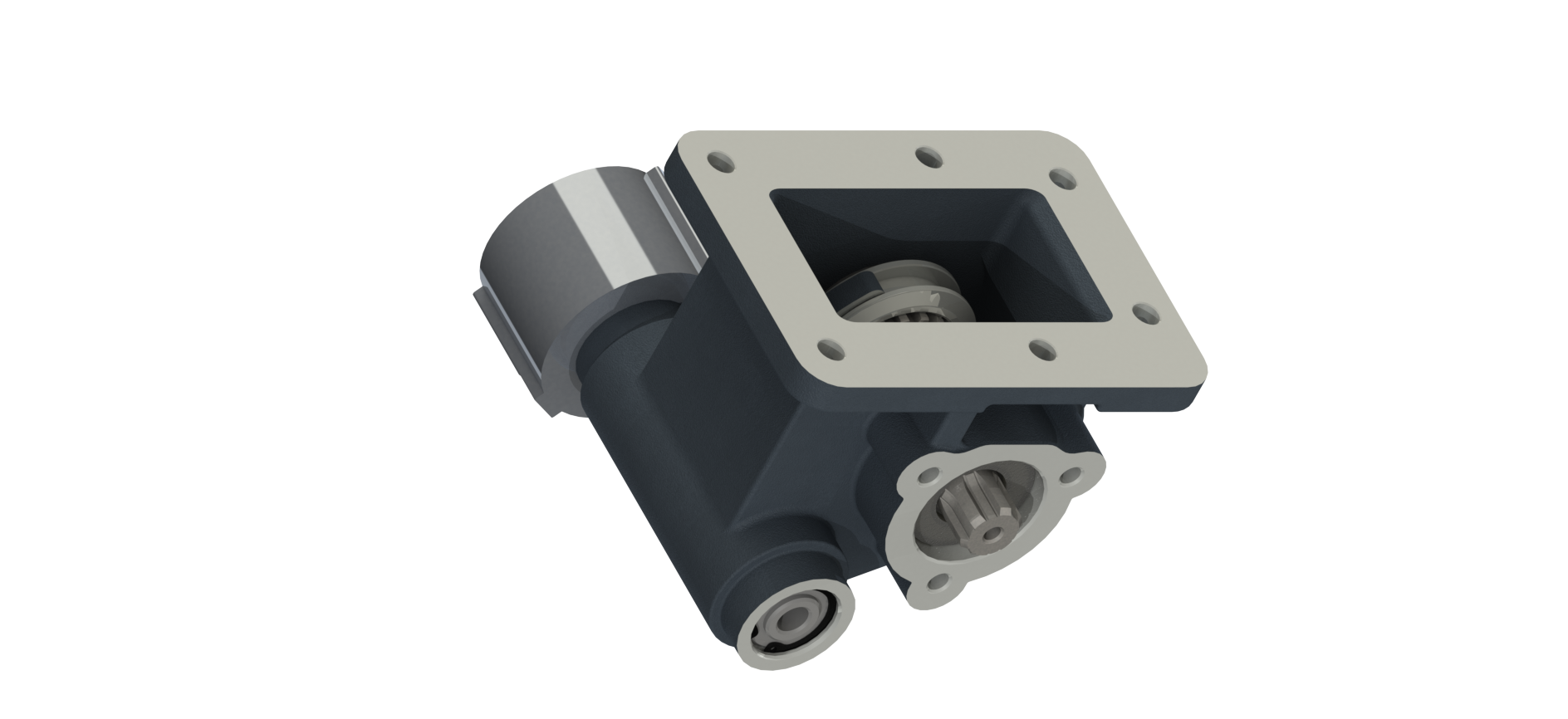

PTO Mitsubishi MO35S5 UNI

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
50724512M0	ORJİNAL TİP ORGINIAL TYPE	UNİ	YAN SIDE	24,8 Kgm 243,3 Nm	11,4 Hp 8,5 Kw	440	1:1
50724522M0		ADAPTÖRLÜ İSO ADAPTER WİTH İSO
50724532M0		FLANŞLI WİTH FLANGED
50724542M0		ŞAFTLI WİTH SHAFT
50715512M0	MEKANİK MECHANİC	UNİ		21,1 Kgm 207 Nm	10,2 Hp 7,6 Kw	350
50715522M0		ADAPTÖRLÜ İSO ADAPTER WİTH İSO
50715532M0		FLANŞLI WİTH FLANGED
50715542M0		ŞAFTLI WİTH SHAFT
50715512V0	VAKUMLU WİTH VACUUM	UNİ
50715522V0		ADAPTÖRLÜ İSO ADAPTER WİTH İSO
50715532V0		FLANŞLI WİTH FLANGED
50715542V0		ŞAFTLI WİTH SHAFT

Kullanıldığı Araçlar

EURO 2 FE85PE / PG / FE 649 - 659 - FE 859 E MITSUBISHI / FE150C1-150E1-FE150E2 CANTER 2.0T WIDE CAB FG145C1 4X4 CANTER 2.5T-FE150W1 3.5T-150G1 4T-150G2 4.5T (722 -714) HD 65/72 HYUNDAI HYUNDAI DYMOS / 657 CANTER / FE84PE6L

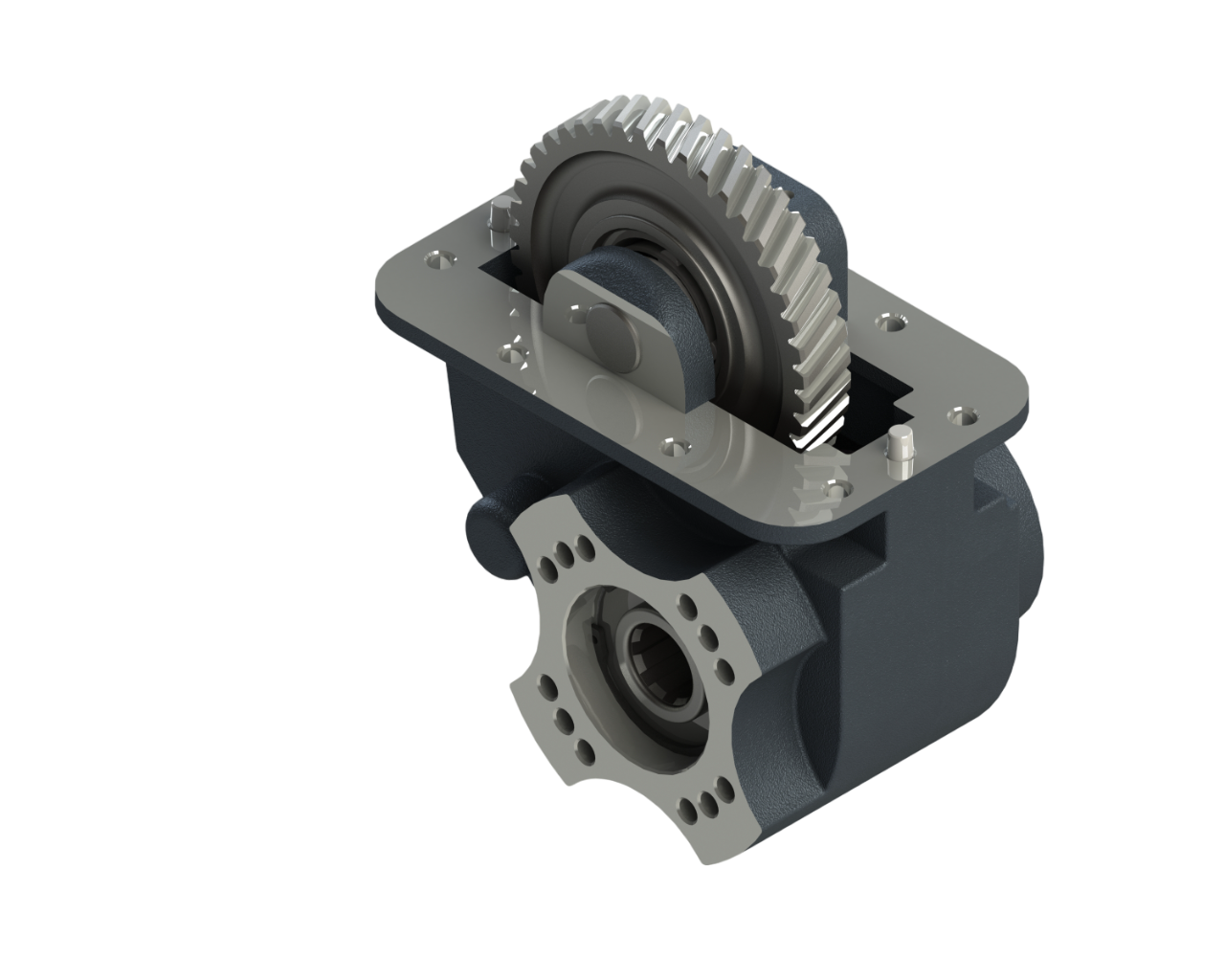

PTO Renault B9/B18 Pnö. ISO

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
51810512P0	PNÖMATİK PNEUMATİC	ADAPTÖRLÜ UNİ ADAPTER UNI	YAN SIDE	18,2 Kgm 178,5 Nm	15 Hp 11,2 Kw	750	1:1,7
51810522P0		ISO
51810532P0		ADAPTÖRLÜ FLANŞLI ADAPTER WİTH FLANGED
51810542P0		ADAPTÖRLÜ ŞAFTLI ADAPTER WİTH SHAFT

Kullanıldığı Araçlar

RENAULT ( R.V.I) G340TI MAXTER 280-340-385-400 PREMIUM 430-470 MAGNUM INTEGRAL

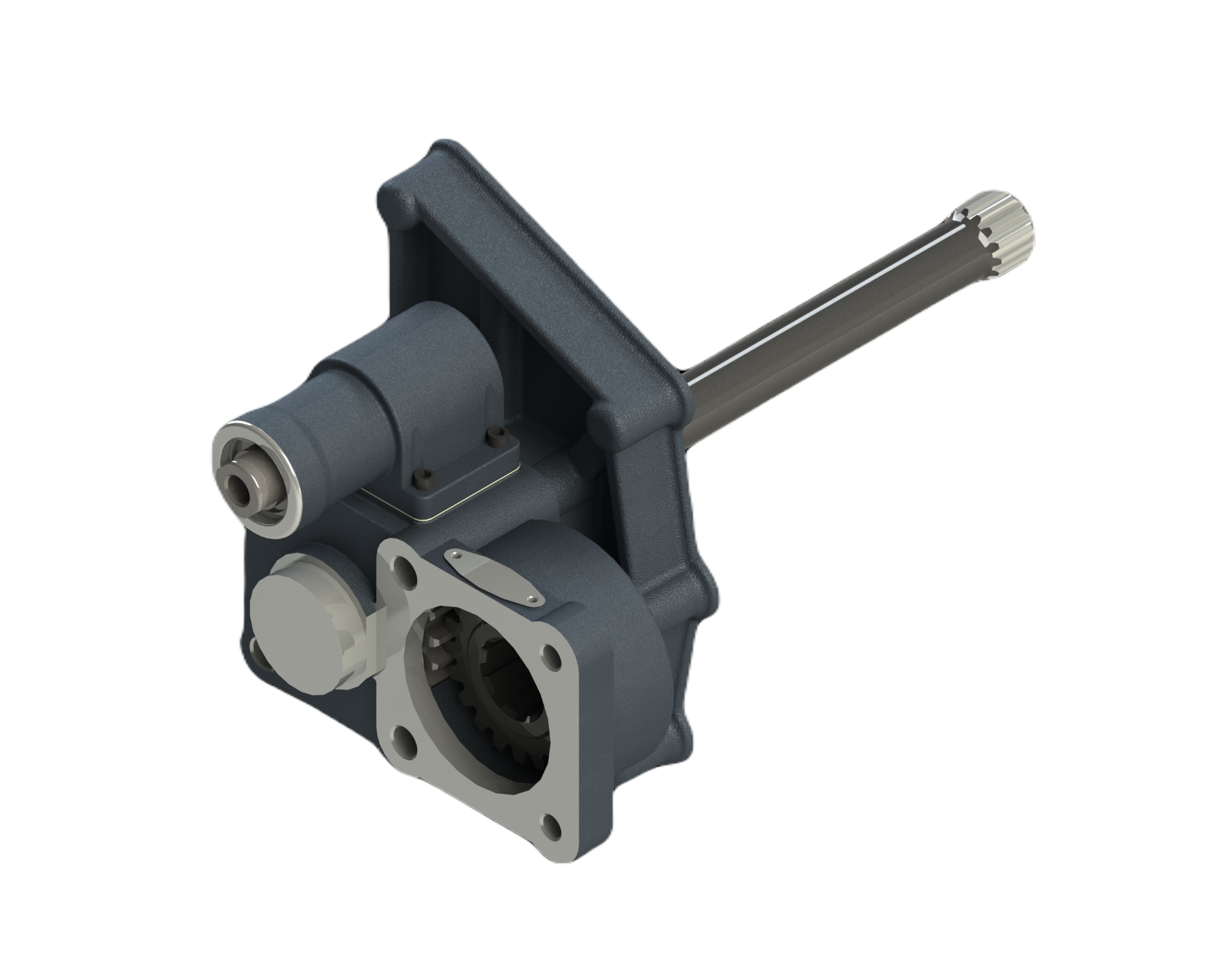

PTO ZF-2 Traxon Aktarmalı Pnö. ISO

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
50240311P0	PNÖMATİK PNEUMATİC	ADAPTÖRLÜ UNİ ADAPTER UNİ	YAN SIDE	26,5 Kgm 260 Nm	24,5 Hp 18,3 Kw	675	1:1,2
50240321P0		İSO
50240331P0		ADAPTÖRLÜ FLANŞLI FLANGED WİTH ADAPTER
50240341P0		ADAPTÖRLÜ ŞAFTLI SHAFT WİTH ADAPTER

Kullanıldığı Araçlar

TRAXON 12 TX 2620 TD

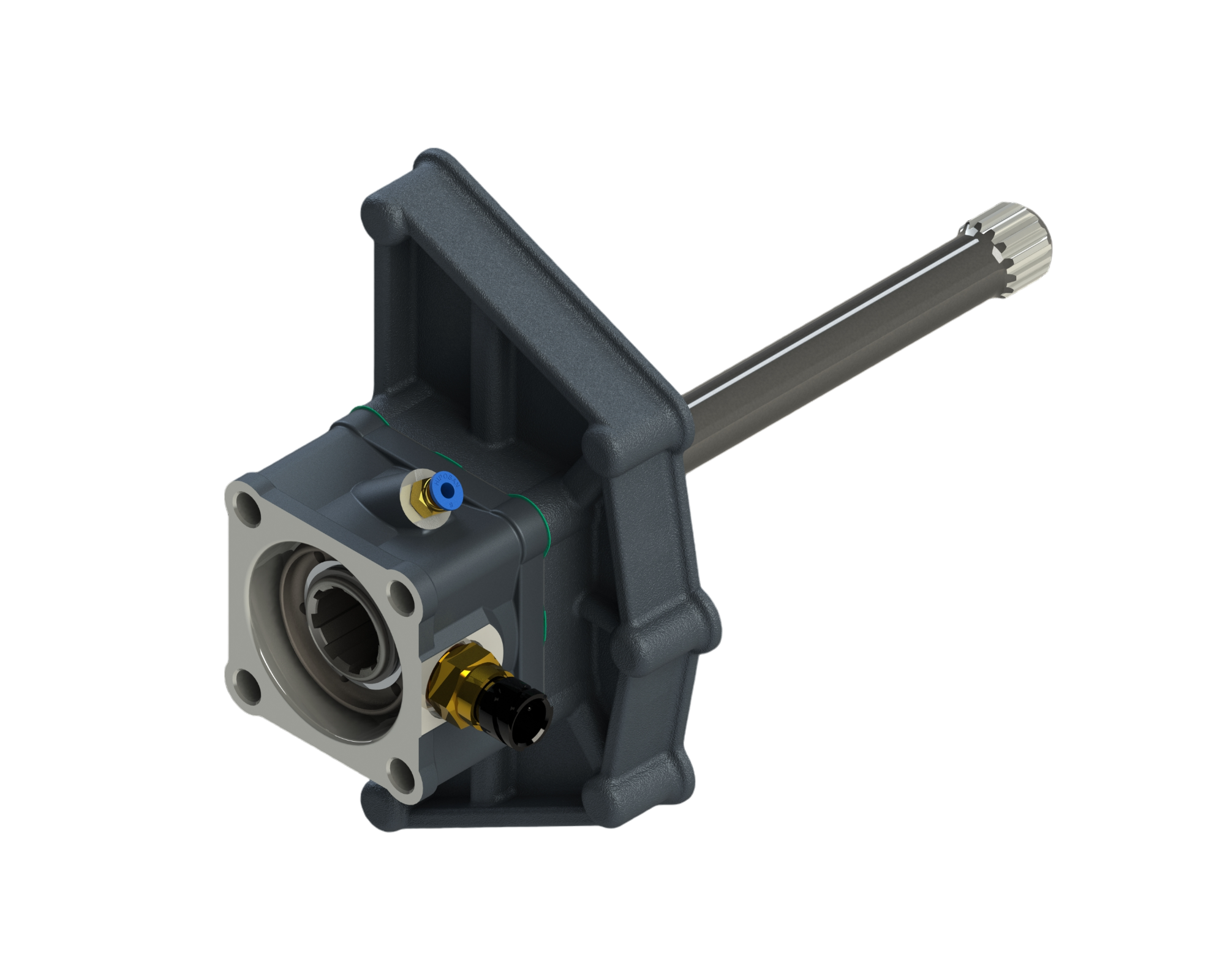

PTO ZF-1 Traxon Tek Dişli Pnö. ISO

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
50240312P0	PNÖMATİK PNEUMATİC	ADAPTÖRLÜ UNİ ADAPTER UNİ	YAN SIDE	23 Kgm 255 Nm	16 Hp 12 Kw	500	1:1
50240322P0		İSO
50240332P0		ADAPTÖRLÜ FLANŞLI FLANGED WİTH ADAPTER
50240342P0		ADAPTÖRLÜ ŞAFTLI SHAFT WİTH ADAPTER

Kullanıldığı Araçlar

FORD 1848

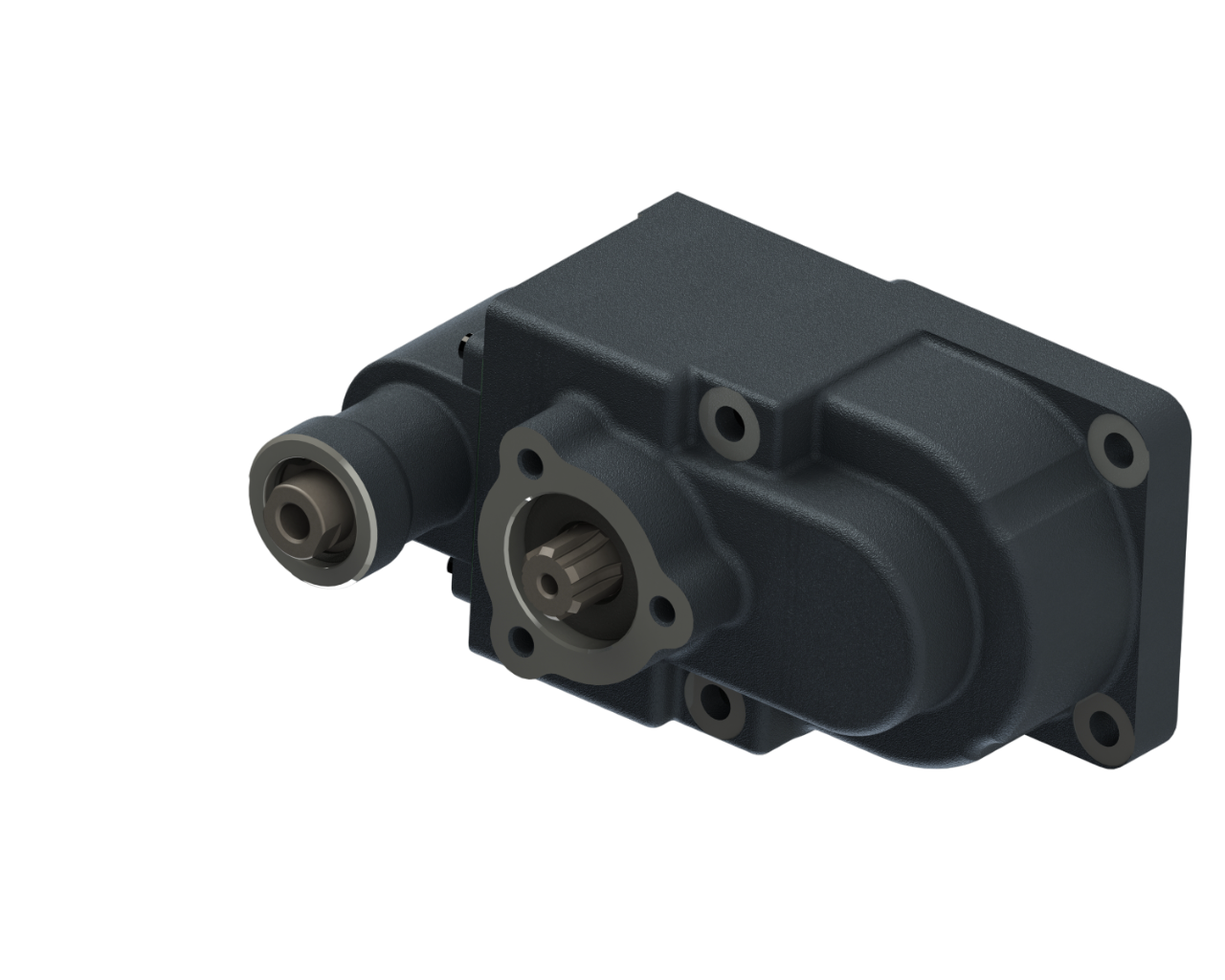

PTO Turner T5C4060 Kuyruk Pnö. UNI

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
51012311P0	PNÖMATİK PNEUMATİC	UNİ	KUYRUK REAR	24,9 Kgm 244,2Nm	23,9 Hp 17,8 KW	500	1.1,2
51012321P0		ADAPTÖRLÜ İSO ADAPTER WİTH İSO
51012331P0		FLANŞLI WİTH FLANGED
51012341P0		ŞAFTLI WİTH SHAFT

Kullanıldığı Araçlar

162.22-162.25-170.25 FATİH / YAVUZ 1850-2200 / 700-800-900 DODGE / SÜPER 900 DODGE / 1210 FORD

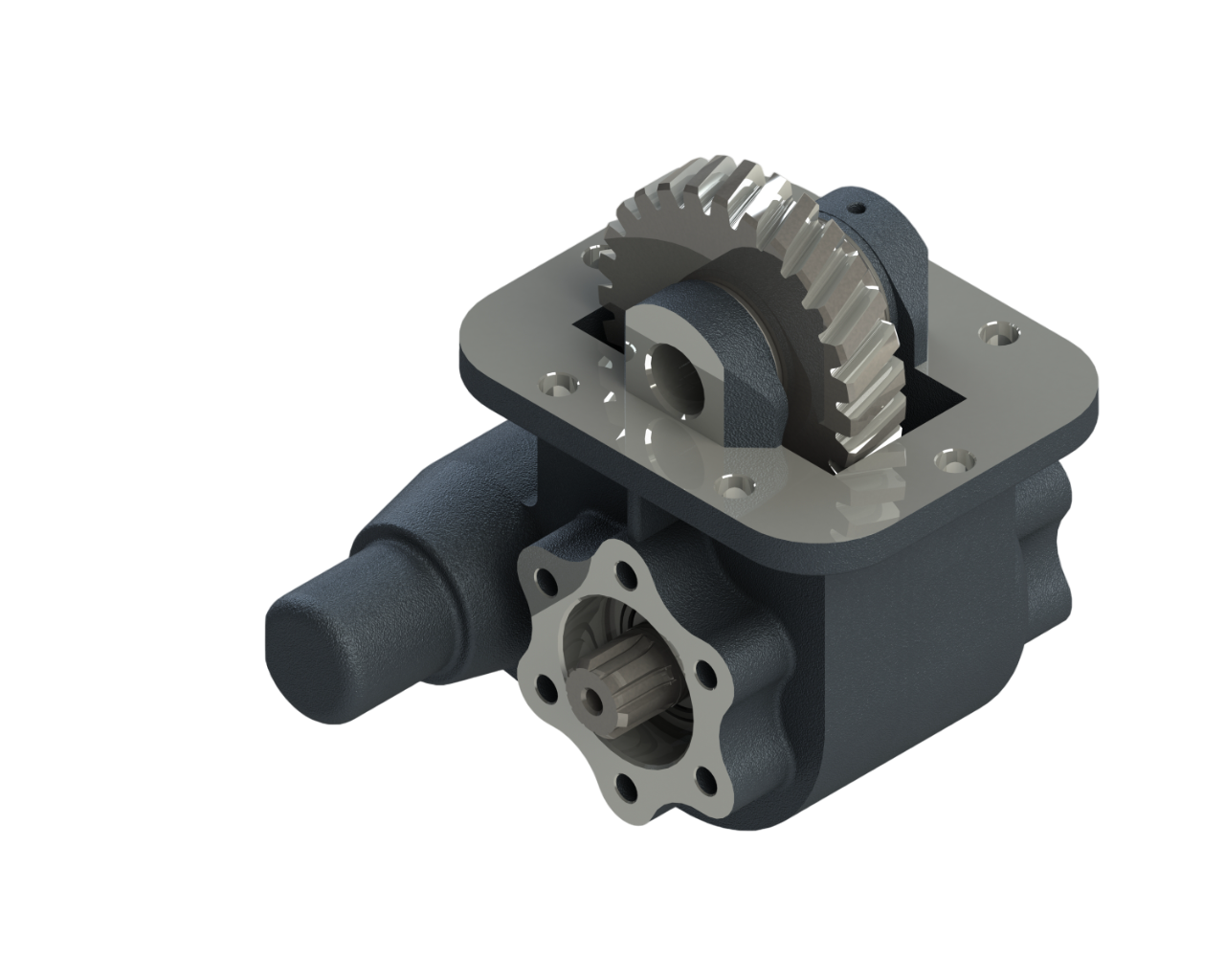

PTO Turner T5C4060 Yan Pnö. UNI

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
51013511P0	PNÖMATİK PNEUMATİC	UNİ	YAN SIDE	34 Kgm 333,4 Nm	24,5 Hp 18,3 KW	500	1:1
51013521P0		ADAPTÖRLÜ İSO ADAPTER WİTH İSO
51013531P0		FLANŞLI WİTH FLANGED
51013541P0		ŞAFTLI WİTH SHAFT

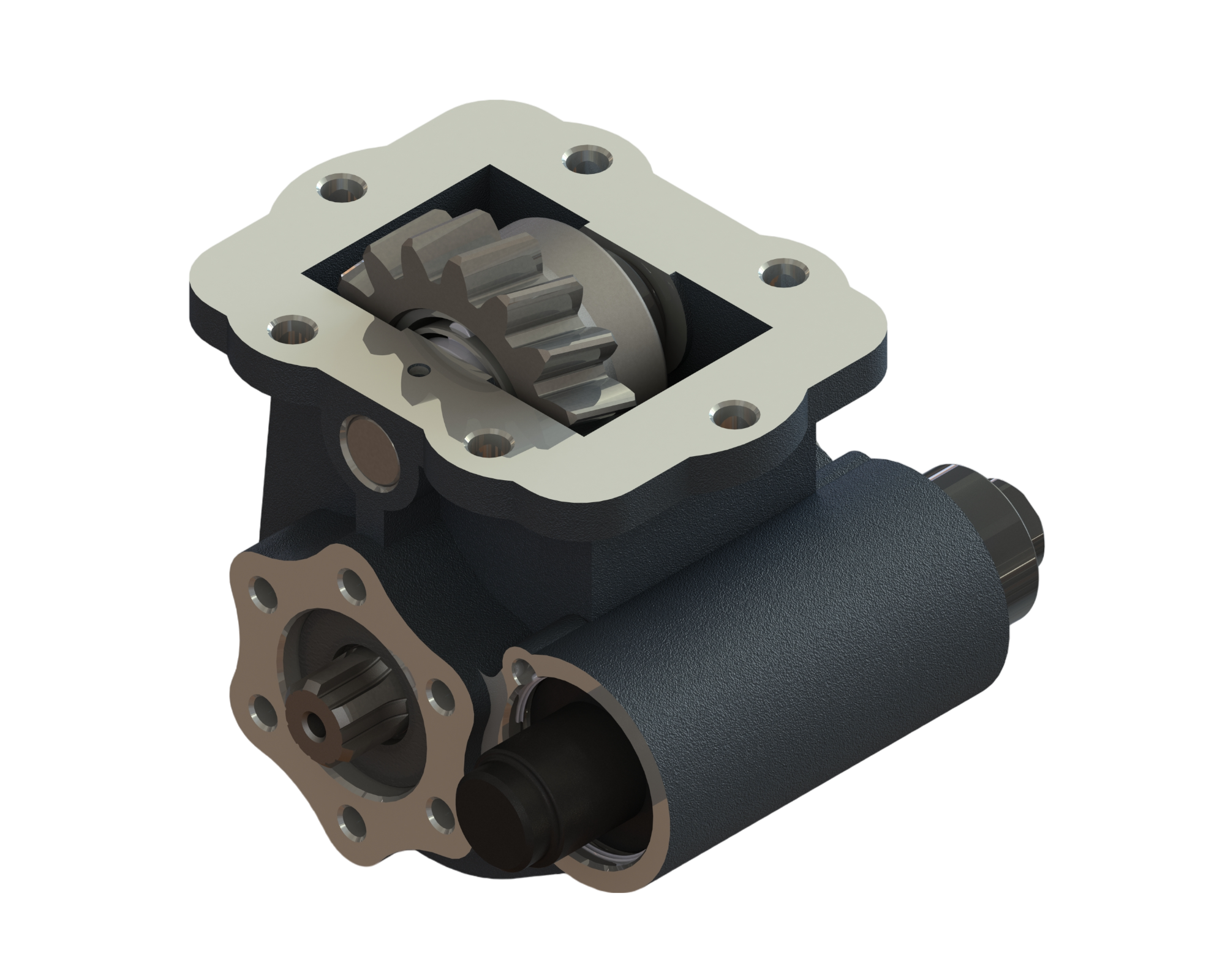

PTO ZF 9S 109 (12,91) Yan Pnömatik UNI

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
50223512P0	PNÖMATİK PNEUMATİC	UNİ	YAN SIDE	23 Kgm 238 Nm	30 Hp 23 Kw	750	1:0.9
50223522P0		ADAPTÖRLÜ İSO ADAPTER WİTH İSO
50223532P0		FLANŞLI WİTH FLANGED
50223542P0		ŞAFTLI WİTH SHAFT

Kullanıldığı Araçlar

32.270 MAN / 827-832 BMC PRO / 270-26 FATİH / 3226-3227C-3227S-2527 FORD CARGO/1830 -2530-3230C-3230S-3240-4030-4050 FORD CARGO / BMC 270-280 / 19.360 MAN 935 PRO

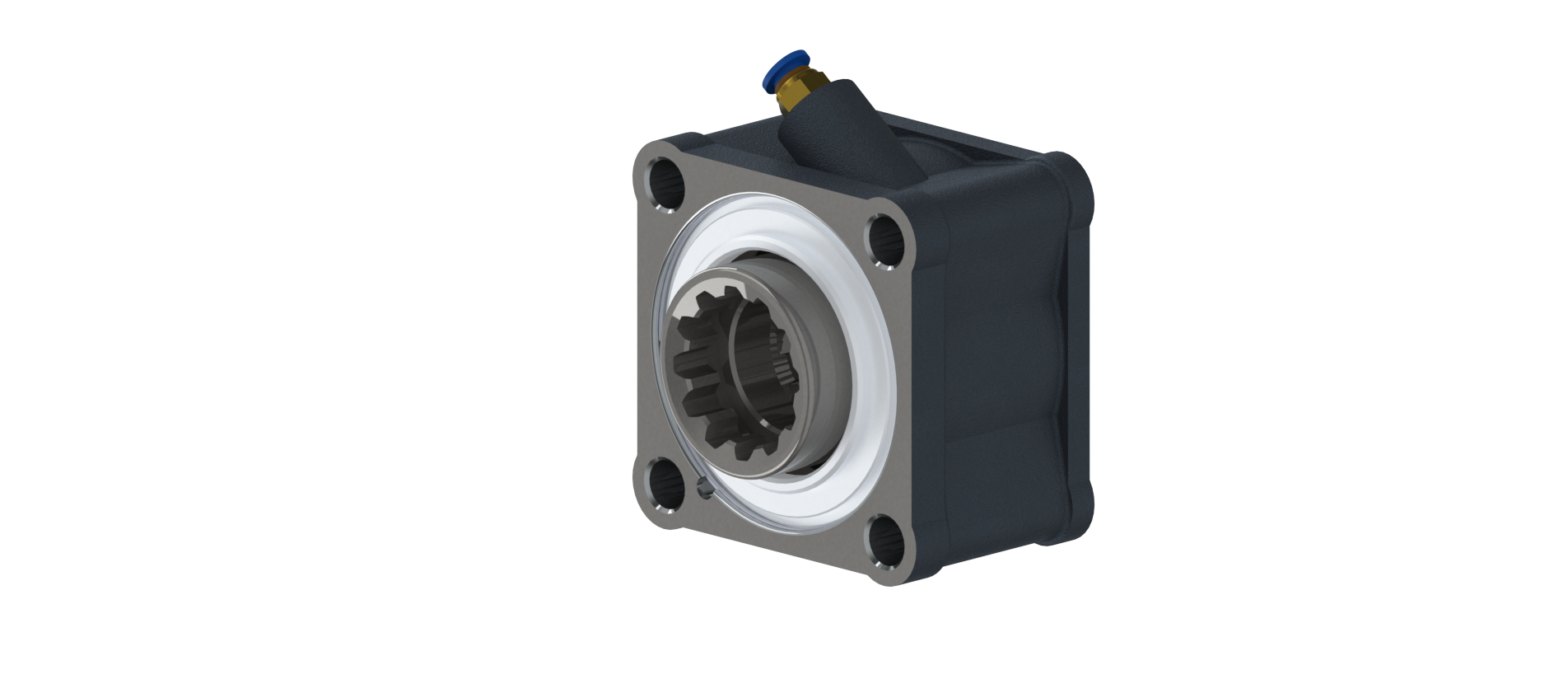

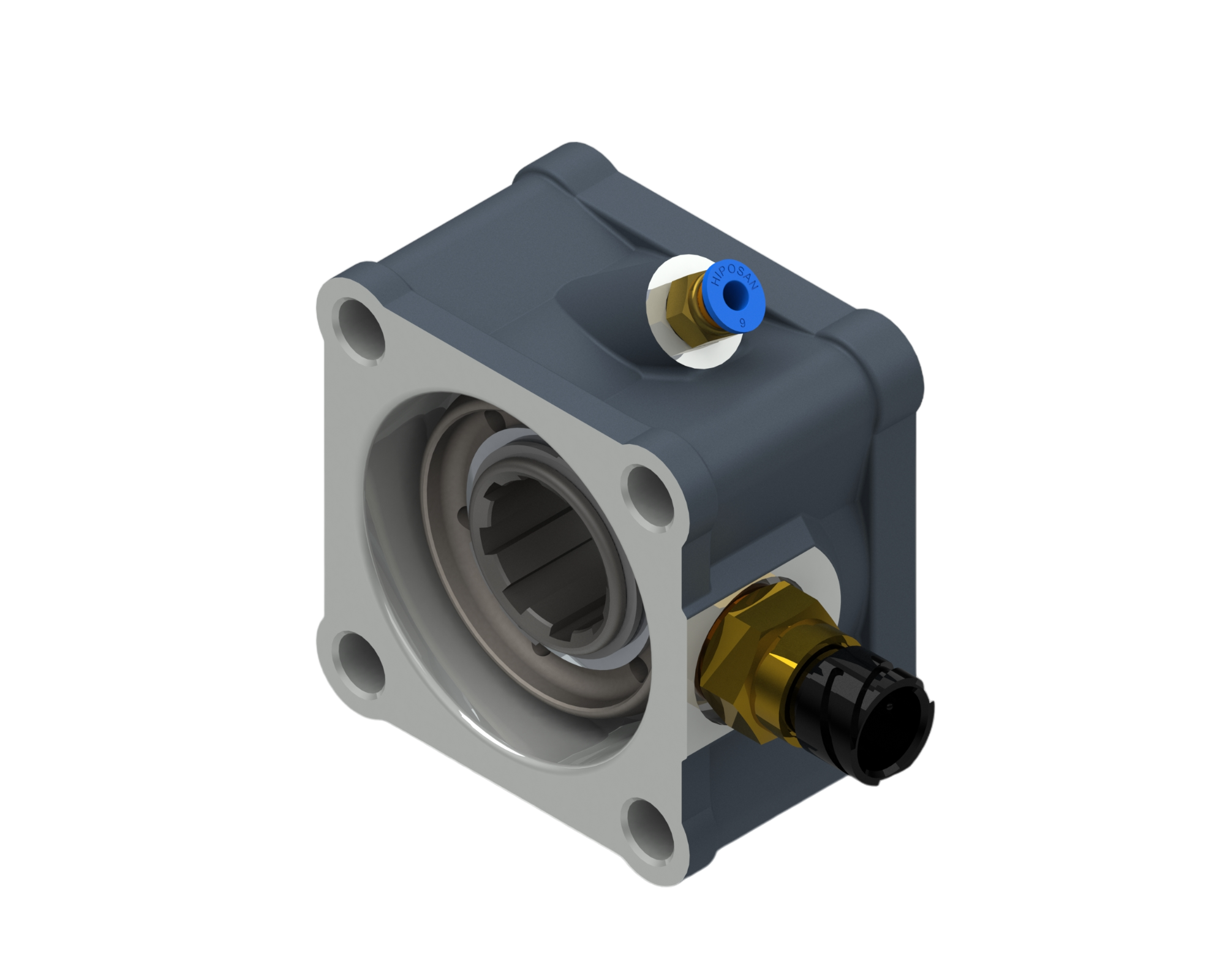

PTO ZF1 Müşürlü Kuyruk Tek Dişli Pnö. ISO

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
50210312P0	PNÖMATİK PNEUMATİC	ADAPTÖRLÜ UNİ ADAPTER UNİ	KUYRUK REAR	23 Kgm 255 Nm	16 Hp 12 Kw	500	1:1
50210322P0		İSO
50210332P0		ADAPTÖRLÜ FLANŞLI FLANGED WİTH ADAPTER
50210342P0		ADAPTÖRLÜ ŞAFTLI SHAFT WİTH ADAPTER

Kullanıldığı Araçlar

MAN / MERCEDES / BMC PROFESYONEL /FORD CARGO / CHRYSLER HİNO / DODGE / FARGO / IVECO / DAF / DAEWOO /RENAULT

PTO ZF-1 Traxon Tek Dişli Pnö. ISO

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
50240312P0	PNÖMATİK PNEUMATİC	ADAPTÖRLÜ UNİ ADAPTER UNİ	YAN SIDE	23 Kgm 255 Nm	16 Hp 12 Kw	500	1:1
50240322P0		İSO
50240332P0		ADAPTÖRLÜ FLANŞLI FLANGED WİTH ADAPTER
50240342P0		ADAPTÖRLÜ ŞAFTLI SHAFT WİTH ADAPTER

Kullanıldığı Araçlar

FORD 1848

PTO ZF5 Eğik Hava Yastıklı Helis Çift Dişli Pnö. ISO

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
50241311P0	PNÖMATİK PNEUMATİC	ADAPTÖRLÜ UNİ ADAPTER UNİ	KUYRUK REAR	26,5 Kgm 260 Nm	24,5 Hp 18,3 Kw	650	1:1,21
50241322P0		İSO
50241332P0		ADAPTÖRLÜ FLANŞLI FLANGED WİTH ADAPTER
50241342P0		ADAPTÖRLÜ ŞAFTLI SHAFT WİTH ADAPTER

PTO ZF 6S 850 Eğik Hava Yastıklı Çift Dişli Pnö. ISO

PTO KODU PTO CODES	PTO TİPİ PTO TYPE (A)	PTO ÇIKIŞ TİPİ PTO OUTLET TYPE (B)	BAĞLANTI MOUNTİNG	TORK TORQUE (Kgm / Nm)	GÜÇ POWER (Hp / Kw)	DEVİR SPEED (RPM)	ORAN RATİO
50251311P0	PNÖMATİK PNEUMATİC	ADAPTÖRLÜ UNİ ADAPTER UNİ	KUYRUK REAR	22,4 Kgm 219,7 Nm	20 Hp 14,9 Kw	650	1:1,21
50251321P0		İSO
50251331P0		ADAPTÖRLÜ FLANŞLI FLANGED WİTH ADAPTER
50251341P0		ADAPTÖRLÜ ŞAFTLI SHAFT WİTH ADAPTER

Kullanıldığı Araçlar

8.163-10.185-L 160C-LE 12.160-12.163-12.185-LE 18.220-18.225-18.230-18.240 MAN / 518-522 PRO / DAEWOO AVIA (CEK CUM.) / 180.18-180.25 -280.25-280.26 FATIH BMC / LF55-CF65- CF75 DAF / ASHOK LEYLAND / 815 ATEGO / 28.280 MAN / TGL 8.180-12.180 100E18-120E18- 150E18 EUROCARGO EURO5 IVECO / KAMAZ 4308-43253
